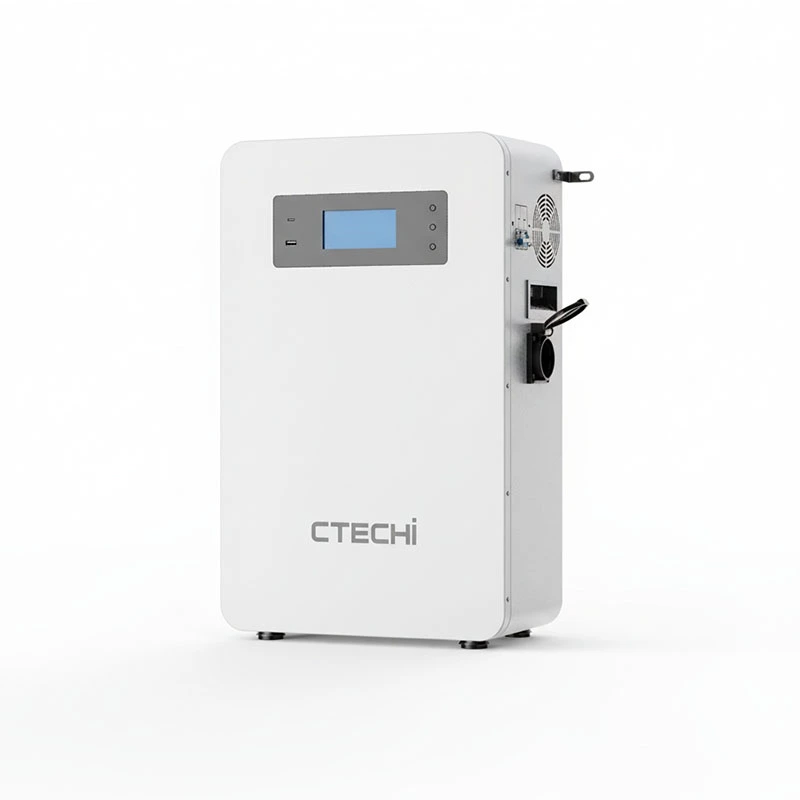

All in One Inverter and Lithium Battery For Residential Solar

  • Rated Capacity:5.12KWH/16KWh
  • Single Cell Capacity:100/280/304/314Ah
  • System Configuration:1P16S
  • Rated Current:50A/150A
  • Weight:Approx. 49Kg/135KG
  • Dimensions:560*487*932mm
  • Protection Level:IP54
  • Display:System status information
  • Photovoltaic Inverter Power:10KW
  • Low Voltage Switch:Yes

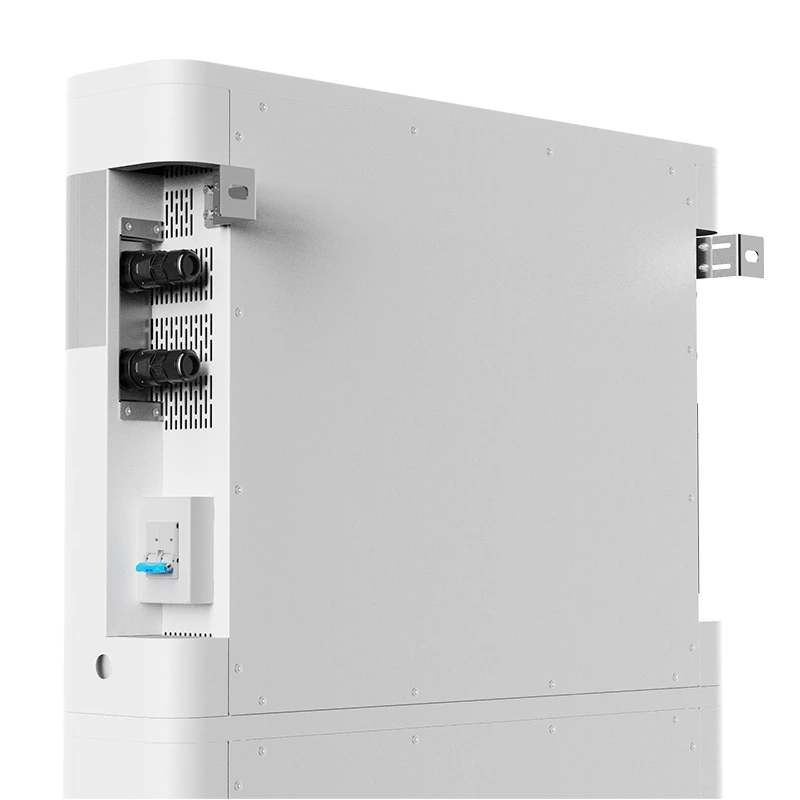

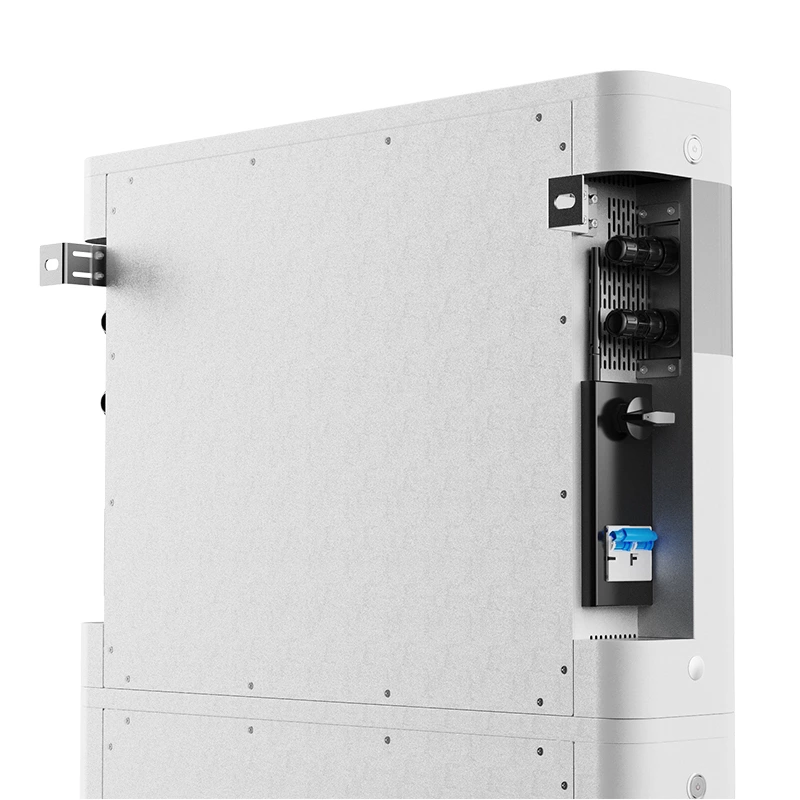

  • DC Switch:Yes

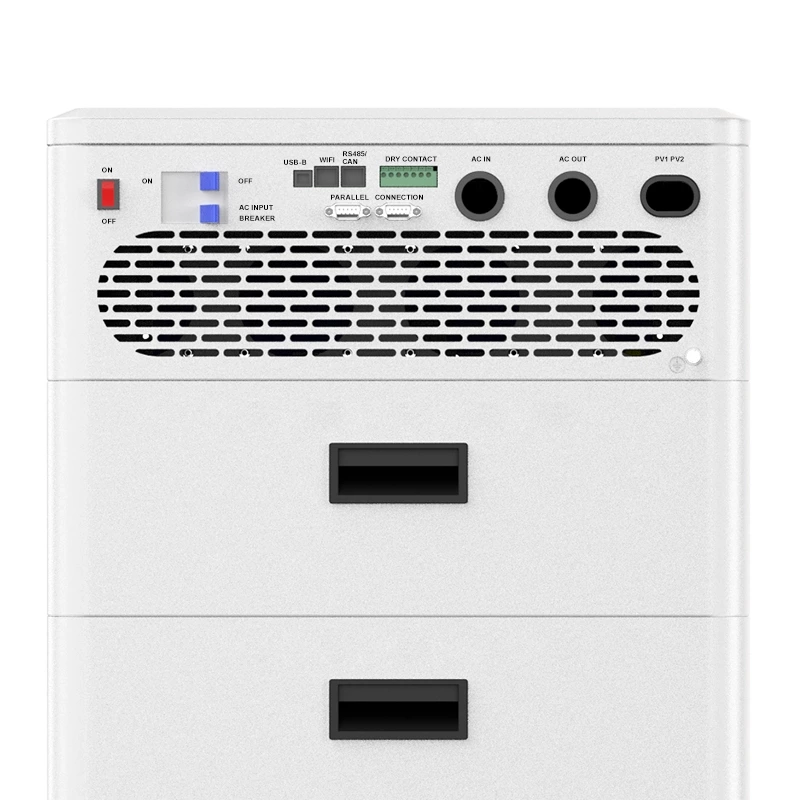

  • PV Input:PV1/PV2
  • AC Input:AC220V/50HZ
  • AC Output:AC220V/50HZ
  • Accessories Base:Yes
  • Wall Mounting Kit:Yes

Product Introduction

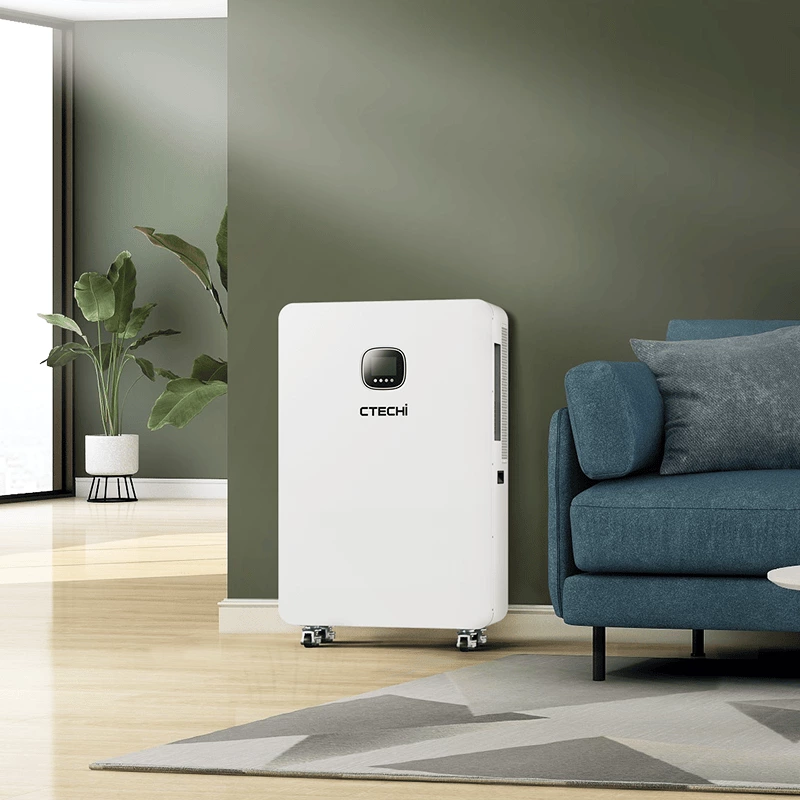

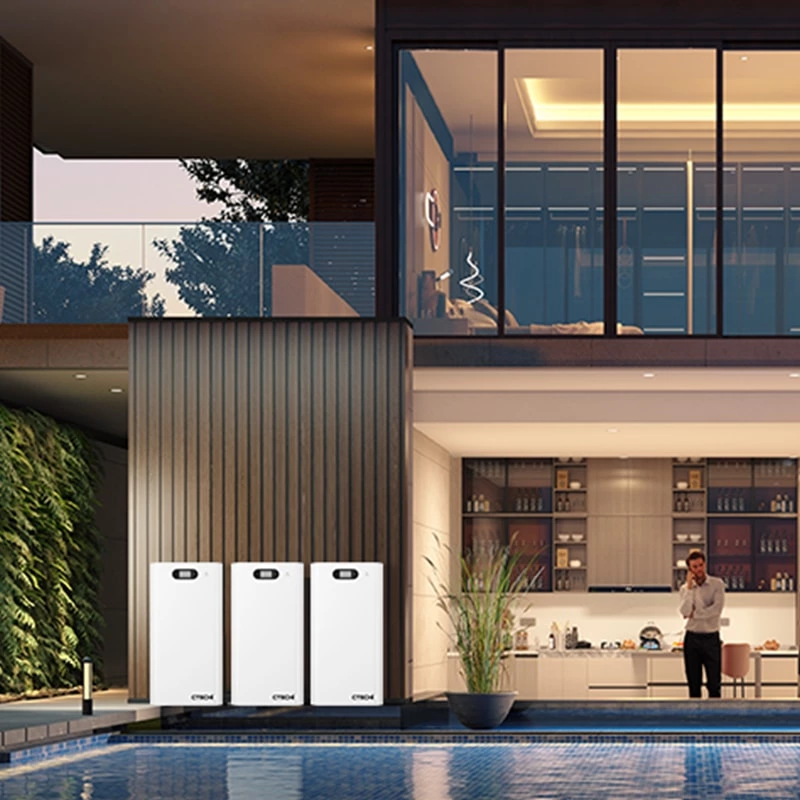

The CTECHI All-in-One Residential Energy Storage System (ESS) combines cutting-edge LiFePO4 battery technology with a powerful off-grid or hybrid inverter, offering an efficient and compact energy storage solution for modern homes. Designed for seamless integration with off-grid or on-grid and off-grid applications, this all-in-one system simplifies energy management by connecting directly to existing PV panels, mains power, and even diesel generators. It provides a reliable and eco-friendly way to store excess solar power during the day and deliver uninterrupted energy during peak hours or outages.

All in One Inverter and Lithium Battery For Residential Solar

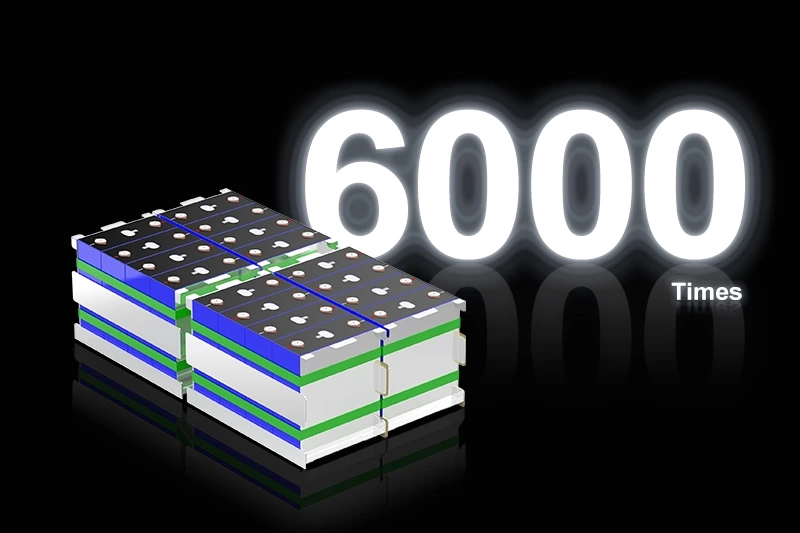

Superior Performance and Longevity

Equipped with premium LiFePO4 battery technology, the system delivers over 6000 cycles, ensuring durability and reliable performance for years. UPS-level switching within ≤10ms, it provides uninterrupted power for critical loads.

All in One Inverter and Lithium Battery For Residential Solar

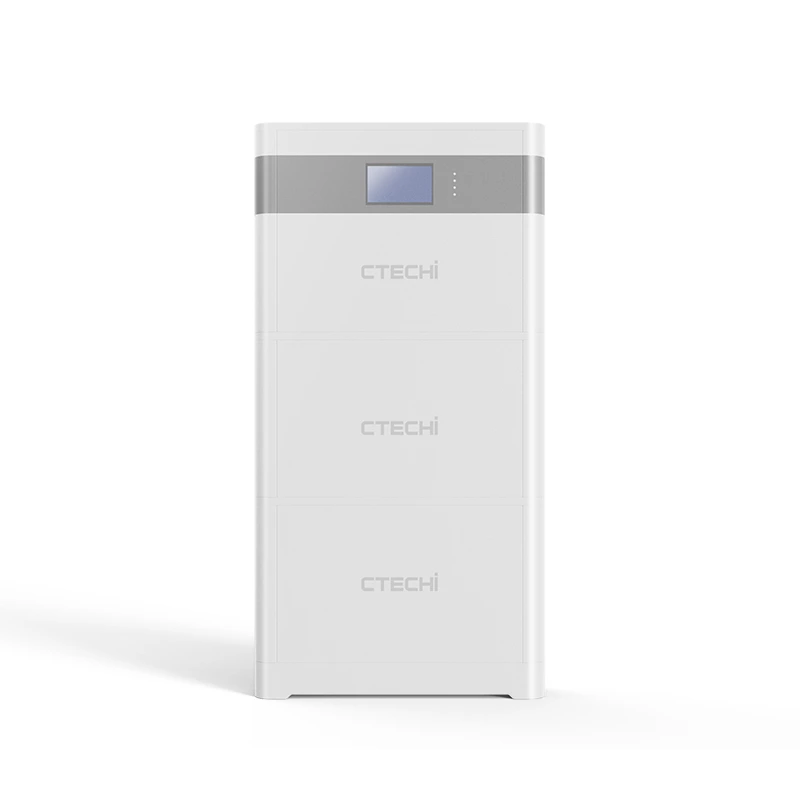

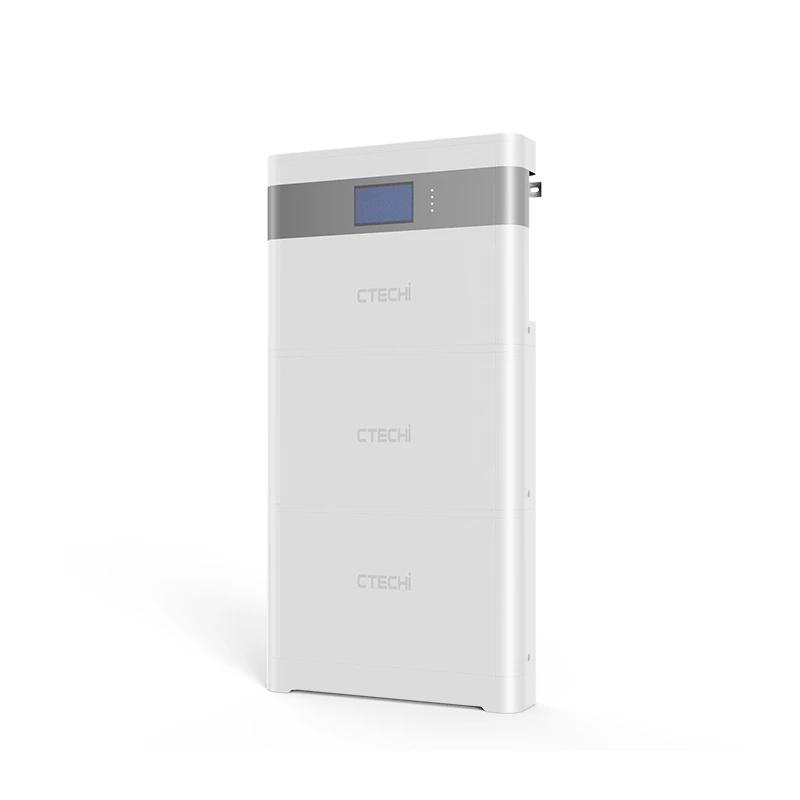

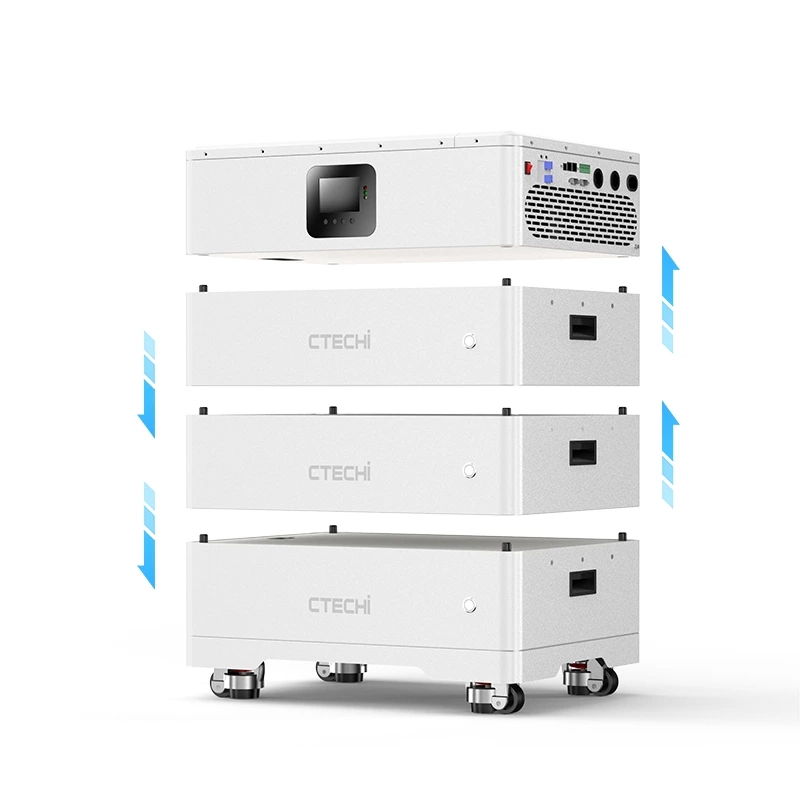

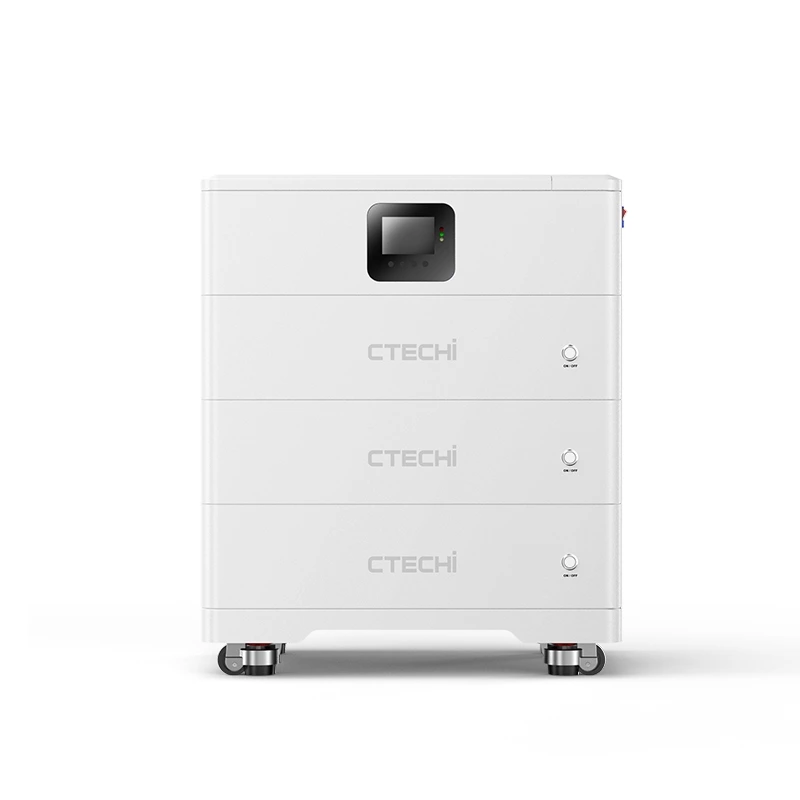

Compact All-in-One Design

This integrated solution combines the inverter and battery, eliminating the need for complex installations. It supports direct connection to PV panels, the grid, and additional power sources, offering flexibility and ease of setup for residential energy storage systems.

All in One Inverter and Lithium Battery For Residential Solar

Advanced Technology and Scalability

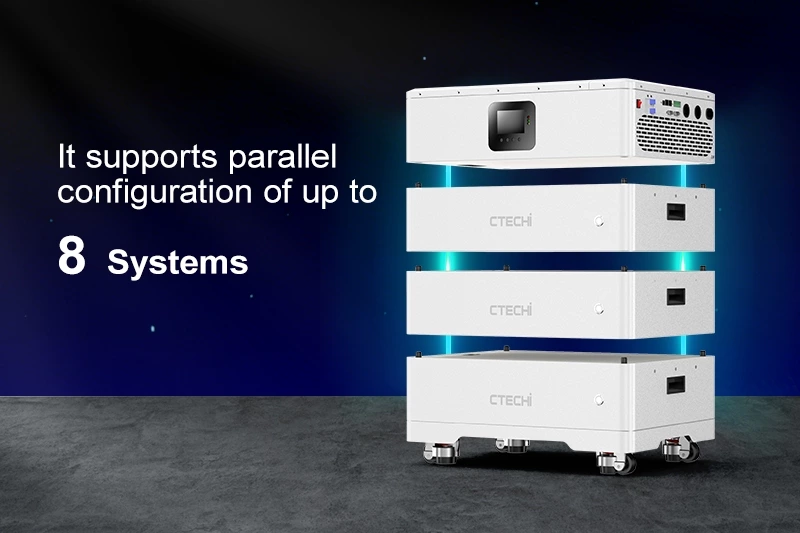

Featuring patented LFP module technology, the system ensures consistent performance and enhanced safety. It supports parallel configuration of up to 8 systems, enabling scalability to meet larger energy demands.

All in One Inverter and Lithium Battery For Residential Solar

Smart Connectivity and Easy Configuration

The system is equipped with WiFi-enabled smart management, allowing users to monitor and control energy usage via a dedicated app. This ensures energy efficiency and convenience at your fingertips.

Technical Data

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.

Battery

Battery Type

LFP,3.2V/314AH

LFP,3.2V/314AH

LFP,3.2V/314AH

LFP,3.2V/102AH

Rated Energy

16.0768kWh

16.0768kWh

8.0384kWh

10.4448kWh

Rated Battery Voltage

51.2V

51.2V

25.6V

51.2V

Voltage Range

43.2V~58.4V

43.2V~58.4V

21.6V~29.2V

43.2V~58.4V

Depth of discharge

90%

90%

90%

90%

Inverter OUTPUT

Rated Output Power

5500W

8000W

3500W

5500W

Max.Peak Power

11000W

12000W

6000W

11000W

Rated Output Voltage

230Vac

230Vac

230Vac

230Vac

Rated AC Frequency

50/60Hz

50/60Hz

50/60Hz

50/60Hz

Switch Time

10ms(typical)

10ms(typical)

10ms(typical)

10ms(typical)

PV INPUT

Num. of MPPT Trackers

1

2

1

1

Max.PV Array Power

6000W

5500W+5500W

4000W

6000W

Max.PV Array Power

22A

22A+22A

13A

22A

Max.Voltage of Open Circuit

500Vdc

500Vdc+500Vdc

500Vdc

500Vdc

MPPT Voltage Range

120~450Vdc

125~425Vdc

120~450Vdc

120~450Vdc

Utility/Generator INPUT

Input Voltage Range

90~280Vac

90~275Vac

90~280Vac

90~280Vac

Frequency Range

50/60Hz

50/60Hz

50/60Hz

50/60Hz

Bypass Overload Current

40A

63A

30A

40A

System parameters

Product Model

PT5515SP

PT8016SP

PT3580S

ESS-L-10F01-P5.5M6

Size

970*860*250mm

1070*860*250mm

830*400*235mm

730*165*1430mm

Weight

135kg

151kg

80kg

130kg

Protection Degree

IP20, Indoor OnIy

IP20, Indoor OnIy

IP20, Indoor OnIy

IP20, Indoor OnIy

Operating Temperature Range

-10~55℃,>45℃ Derating

-10~55℃,>45℃ Derating

-10~55℃,>45℃ Derating

-10~55℃,>45℃ Derating

Noise

<60dB

<60dB

<60dB

<60dB

Cooling method

Built-in fan

Built-in fan

Built-in fan

Built-in fan

Communication interface

RS485/CAN

RS485/CAN

RS485/RS232

RS485/CAN

External module (optional)

Wi-Fi / GPRS

Wi-Fi / GPRS

Wi-Fi / GPRS

Wi-Fi / GPRS
