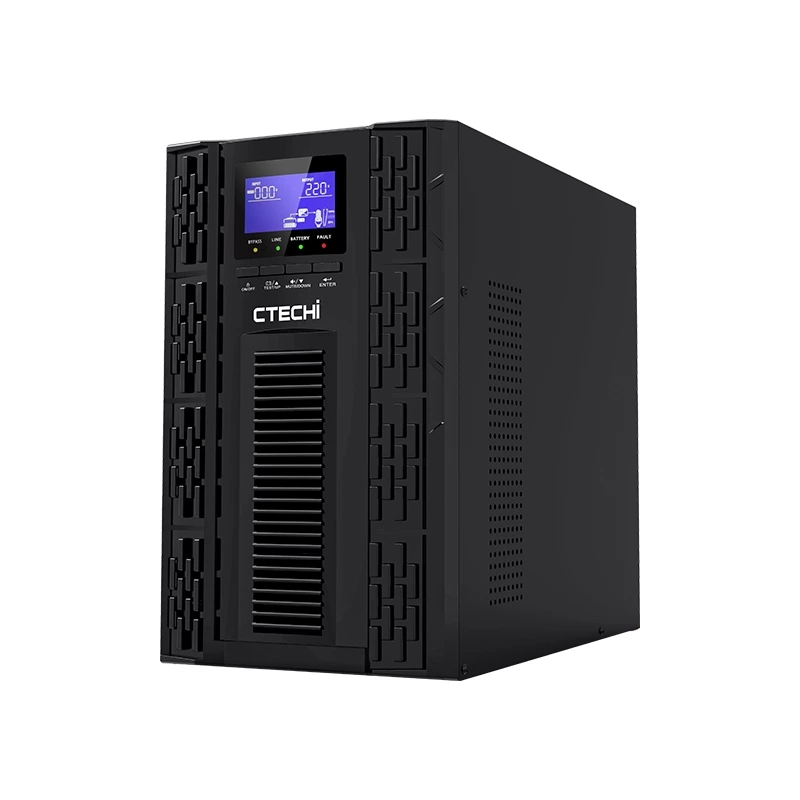

This series features 110V UPS units with LiFePO4 batteries, available in 1KVA to 3KVA capacities, designed for both tower and rack-mount installations. These UPS systems combine the benefits of LiFePO4 battery technology with a versatile design, offering extended backup and enhanced reliability for 110V applications in both tower and rack environments.
Provides up to 3x longer backup time and significantly extended battery lifecycle compared to conventional lead-acid batteries, reducing maintenance.
Incorporates an advanced BMS with MODBUS (RS485) interface and a specialized 4-state charger for LiFePO4 batteries, ensuring optimal performance, safety, and longevity.

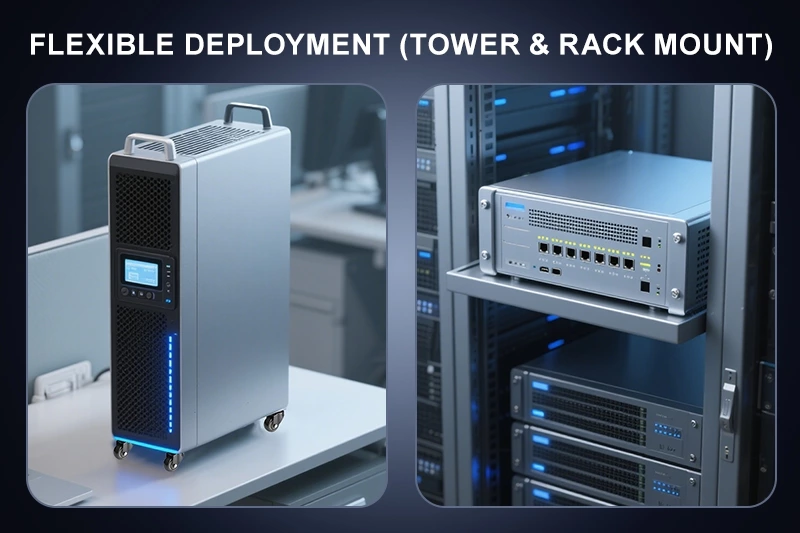

Supports both tower and rack-mount installations, offering adaptable solutions for various space and deployment requirements.
Provides the highest level of power protection, completely isolating connected equipment from incoming power disturbances.
Ensures stable operation and protects connected equipment across a broad range of input voltages and frequencies, enhancing reliability in unstable grids.
Allows the UPS to power on from battery in the absence of utility power, critical for initiating systems during blackouts.
|
Tower Model |
Li LV C1K |
Li LV C1KS |
Li LV C2K |
Li LV C2KS |
Li LV C3K |
Li LV C3KS |
|||||||
|

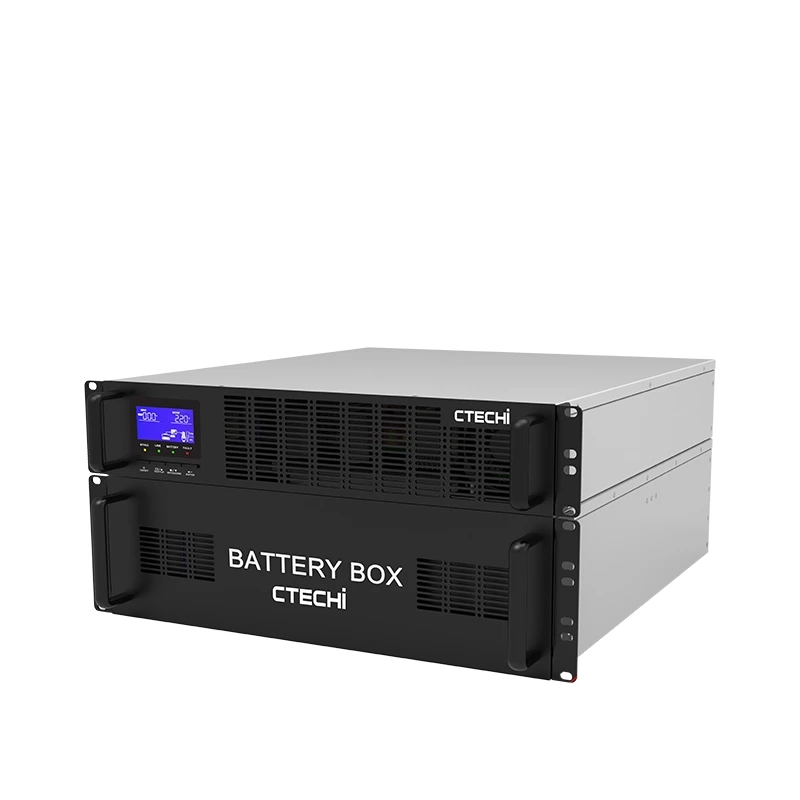

Rack Model |
Li LV R1K |
Li LV R1KS |
Li LV R2K |
Li LV R2KS |
Li LV R3K |
Li LV R3KS |
|||||||
|
Capacity |
1KVA/900W |
2KVA/1.8KW |
3KVA/2.7KW |
||||||||||
|
Phase |
Single phase input single phase output |
||||||||||||
|
AC INPUT |
|
||||||||||||
|
Wiring |
1 phase 3 wires ( L/N+PE) |
||||||||||||
|
Rated Voltage |
110/115/120/127VAC |
||||||||||||
|
Voltage Range |
Line-Neutral: 60~145VAC |
||||||||||||
|
Frequency Range |
40Hz~70Hz |
||||||||||||
|
Input Power Factor |
≥0.99 |
||||||||||||
|
AC OUTPUT |
|
||||||||||||
|
Wiring |
L/N+PE |
||||||||||||
|
Output Voltage |
110/115/120/127VAC |
||||||||||||
|
Voltage Regulation |
±1% |
||||||||||||
|
Output Frequency |
50/60±4Hz(Sync mode); 50/60Hz±0.1%(Free run) |
||||||||||||
|
Waveform |
Pure sine wave |
||||||||||||
|
Distortion(THDV%) |
<2%(Linear load); <8%(Non-Linear load) |
||||||||||||
|
Overload Capability |
100%~105% continuous; 60Sec.@105%~130% rated load; 10Sec.@130%~150% rated load; 0.3Sec.@>150% rated load |
||||||||||||
|
EFFICIENCY |
|
||||||||||||
|
Line Mode |
88% |
89% |
90% |
||||||||||
|
Battery Mode |
86% |
87% |
88% |
||||||||||
|
BATTERY & CHARGER |
|
||||||||||||
|
Rated Battery Voltage |
48VDC (default for 15cell of LiFePO4 ) |
||||||||||||
|
Battery Capacity |
600WH |
External battery depends |
1000WH |
External battery depends |
1000WH |
External battery depends |
|||||||
|
Backup Time |
>40mins @ half load |
>30mins @ half load |
>20mins @ half load |
||||||||||
|
Charging Current |
4A/8A |
||||||||||||
|
Charging Voltage |
52.8V(default for 15cell of LiFePO4 ) / Customized according to battery request |
||||||||||||
|
Charger Behavior & Protection |
CC. CV. floating. turn-off 4 states 3 over voltage protection loop, preserve interface for over temperature/over pressure switch off interface |
||||||||||||
|
HMI |
|
||||||||||||
|
LED Display |
Mains / battery status, load level, battery level, operation mode |
||||||||||||
|
LCD Display with LED Indicator |
Input mains voltage, frequency, load level, operation mode, health status |
||||||||||||
|
Standards Communication Interface |
(1) RS232 port (2) Network card: support SNMP,TCP/IP protocol , for remote monitor the UPS via smart phone APP, web page, PC monitor software, support server / NAS shutdown (3) Dry contact interface for BMS control (4) MODBUS For BMS interface |
||||||||||||
|
ENVIRONMENT |
|
||||||||||||
|
Temperature Range |
-10~50°C |
||||||||||||
|
Relative Humidity |
0-98%（Non-condensing） |
||||||||||||
|
Acoustics Noise |
<55dB @ 1 meters |
||||||||||||
|
PHYSICAL |
|
||||||||||||
|
Tower Dimension WxDxH (mm) |
C1K: 190x378x318 |
C2K: 190x427x318 |
C3K: 190x427x318 |
||||||||||
|
C1KS: 145x397x220 |
C2KS: 145x397x220 |
C3KS: 190x378x318 |
|||||||||||
|
Rack Dimension WxDxH(mm) |
R1K: 440x400x88 (2U) |
R2K: 440x500x88 (2U) |
R3K: 440x650x88 (2U) |
||||||||||
|
R1KS: 440x400x88 (2U) |
R2KS: 440x400x88 (2U) |
R3KS: 440x400x88 (2U) |
|||||||||||
|
Tower N.W (kg) |
10.8 |
5 |
16.5 |
5.5 |
18 |
7.9 |
|||||||
|
Rack N.W (kg) |
12.5 |
6.5 |
21.6 |
6.8 |
24.5 |
8.2 |
|||||||
