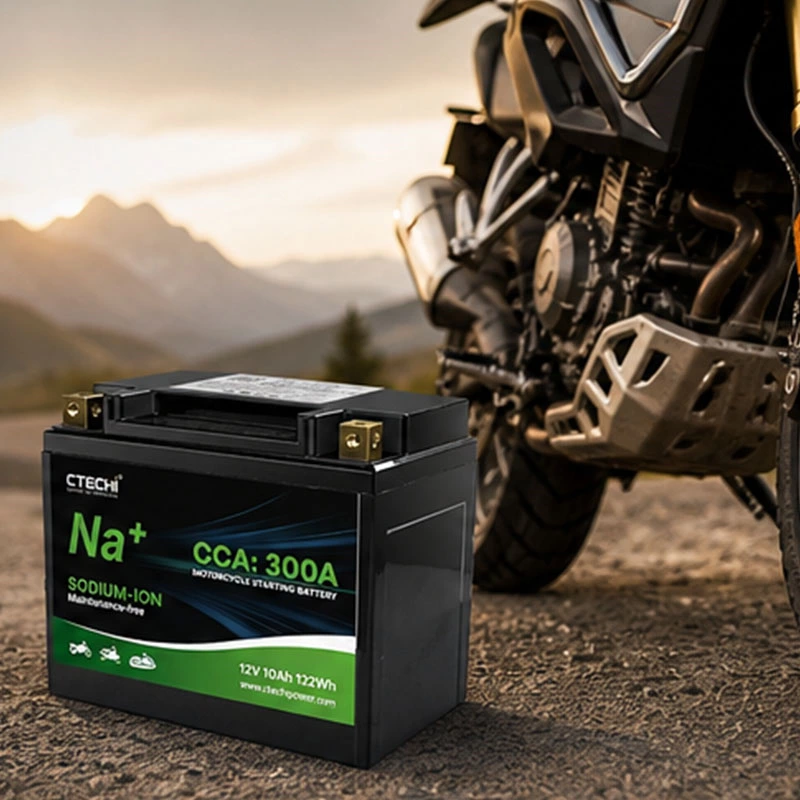

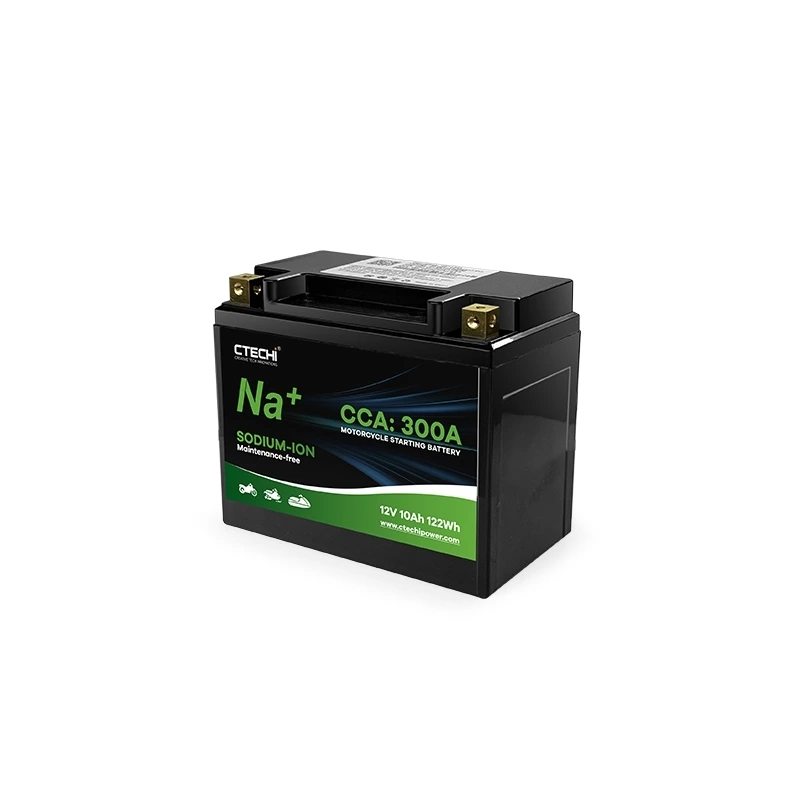

CTECHI 12V10Ah High-Performance Sodium-Ion Starting

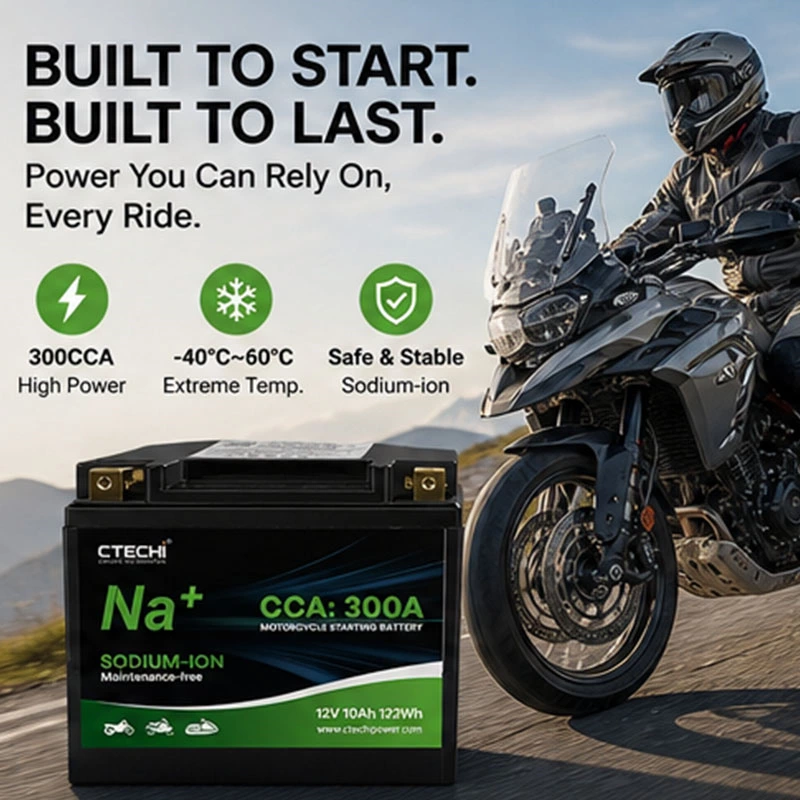

Powerful 300A Cold Cranking Amps (CCA) Delivers an impressive 300A peak current (3S), providing robust starting power for high-displacement motorcycles and heavy-duty V-twin engines.
Large 10Ah Capacity & 122Wh Energy Equipped with large-format NaCR32140 cells, offering extended power reserves for electronic accessories and reliable ignition in all conditions.
Intelligent Active Balancing Technology Features a built-in Active Balance Module and CT-4S PCM to ensure voltage consistency across cells, maximizing battery life and safety.
Superior Cold Weather Resilience Maintains exceptional discharge efficiency from -20°C to 60°C, eliminating the common winter starting issues associated with lithium or lead-acid batteries.
Maintenance-Free & 0V Safe Storage Supports zero-voltage deep discharge storage without damage; no acid refills required, making it the ultimate "install-and-forget" solution.

Enquiry Download

CTECHI 12V10Ah High-Performance Sodium-Ion Starting

CTECHI 12V10Ah High-Performance Sodium-Ion Starting

CTECHI 12V10Ah High-Performance Sodium-Ion Starting

CTECHI 12V10Ah High-Performance Sodium-Ion Starting

CTECHI 12V10Ah High-Performance Sodium-Ion Starting

Product Introduction

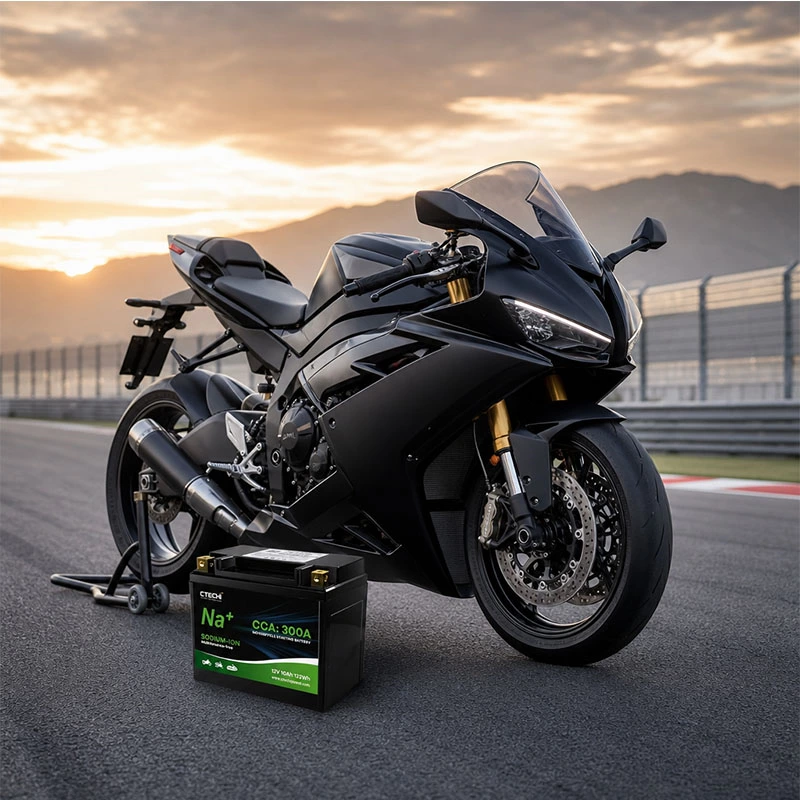

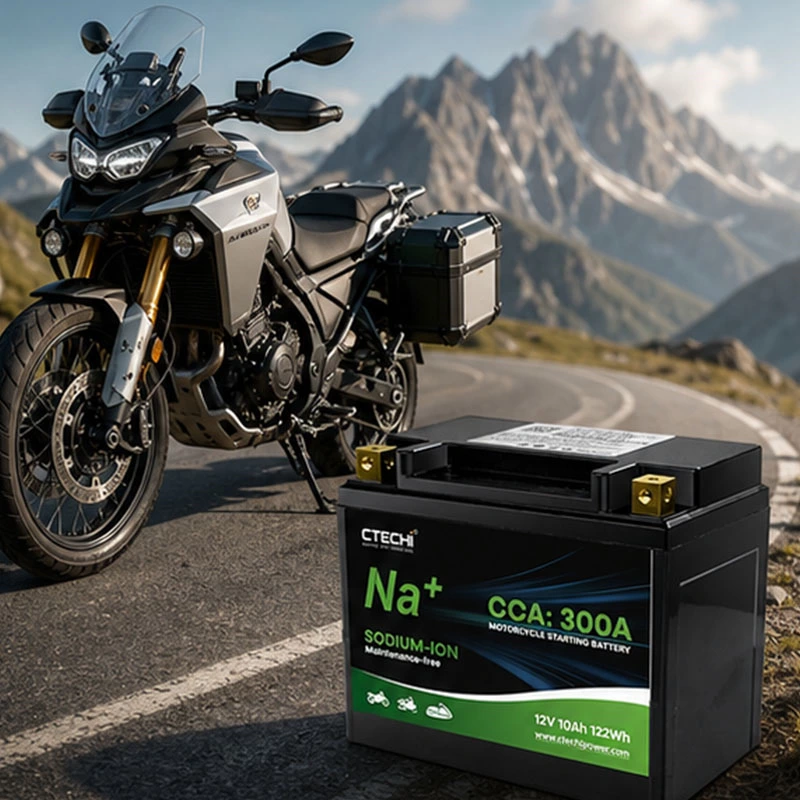

The 12V10Ah is a premium sodium-ion motorcycle battery designed for riders who demand maximum reliability and high cranking power. Utilizing large sodium-ion cells, this 12.2V 10Ah pack delivers a powerful 300CCA, making it ideal for large cruisers, adventure bikes, and sport touring models. Its advanced sodium-ion chemistry provides industry-leading safety, fast charging, and exceptional performance in extreme temperatures, serving as the perfect modern upgrade for heavy lead-acid units.

CTECHI 12V10Ah High-Performance Sodium-Ion Starting

High-Displacement Ignition Mastery

With a 300A instantaneous discharge capability, this battery provides the raw power needed to crank large-bore engines instantly. It is engineered to handle the high-torque demands of modern motorcycles effortlessly.

CTECHI 12V10Ah High-Performance Sodium-Ion Starting

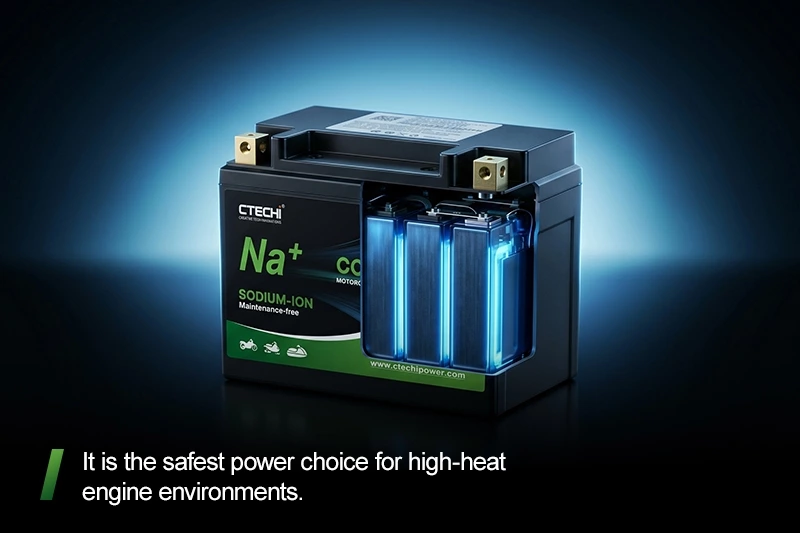

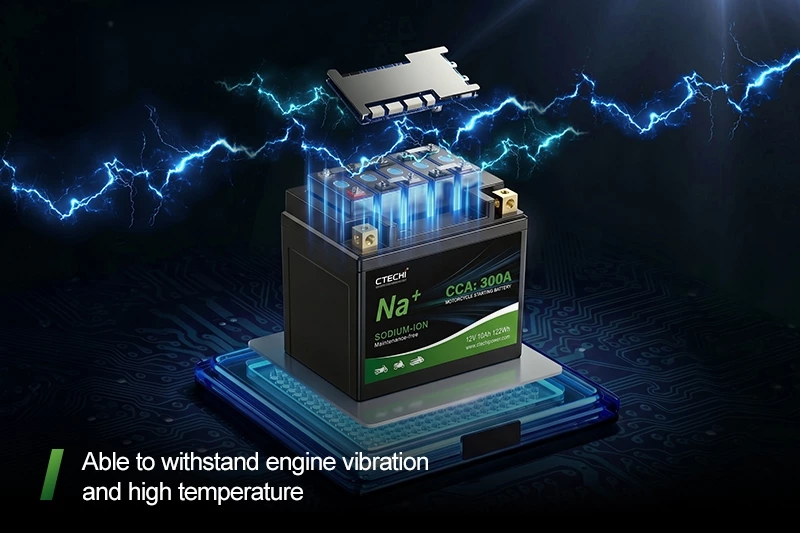

Next-Gen Sodium-Ion Safety

Sodium-ion chemistry is significantly safer than traditional Lithium-ion, offering high thermal stability (up to 200°C+) and a non-flammable electrolyte. It is the safest power choice for high-heat engine environments.

CTECHI 12V10Ah High-Performance Sodium-Ion Starting

Efficient Energy Management

The integrated Active Balance Module rebalances energy between cells in real-time. This not only improves the overall energy efficiency (122Wh) but also ensures the battery maintains peak performance throughout its entire service life.

CTECHI 12V10Ah High-Performance Sodium-Ion Starting

Fast Charge & Deep Recovery

The Na+ technology allows for a 5A standard charge (0.5C) and up to 10A max charge. Its unique ability to recover from a 0V state means you never have to worry about a permanently "bricked" battery after long periods of inactivity.

CTECHI 12V10Ah High-Performance Sodium-Ion Starting

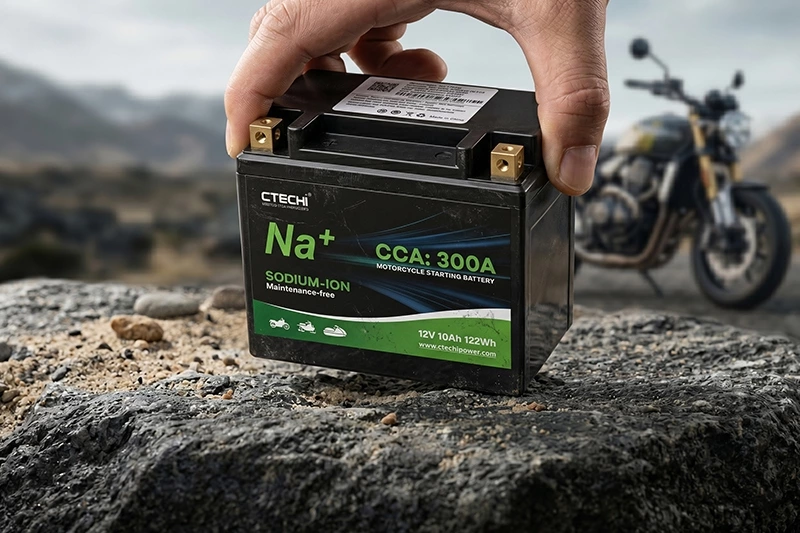

Durable, Lightweight Construction

Weighing only 1.31kg, it is roughly 60% lighter than an equivalent lead-acid battery. The compact 150x85x106mm casing fits a wide range of standard motorcycle battery trays (e.g., YTX14-BS, YTX20 series).

Technical Data

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.

Item	Specification
Model	25325CT12V10Ah
Chemistry	Sodium-Ion
Nominal Voltage	12.2V
Nominal Capacity	10Ah
Energy	122Wh
Peak Current (CCA)	300A (3 Seconds)
Standard Charge Current	5.0A
Max Charge Current	10.0A
Discharge Cut-off Voltage	8.0V
Internal Resistance	≤ 40mΩ
Operating Temp (Charge)	0°C ~ 45°C
Operating Temp (Discharge)	-20°C ~ 60°C
Weight	Approx. 1.31kg
Dimensions (LxWxH)	150 ± 2mm * 85 ± 2mm * 106 ± 2mm

More Products Model:

Normal temperature charging
Model	Nominal Voltage(V)	Typical Capacity(Ah)	Operating Temperature(℃)	25±2℃ CA（A）	-18±2℃ CCA（A）	Charge Current(A)	Size（mm）	Suitable for lead-acid battery models
CT-NA12V2Ah	12	2	0~75	95	70	1-6	115×70×86	YTX4L-BS,YTZ5S,YB4L-A,YB4L-B
CT-NA12V2Ah	12	2	0~75	95	70	1-6	115×70×110	YTX5L-BS,YTZ7S,YB7C-A
CT-NA12V2Ah	12	2	0~75	95	70	1-6	120×60×128	12N5-3B,12N5-4B,YB5L-B
CT-NA12V3.5Ah	12	3.5	0~75	110	85	1-10	115×70×110	YTX5L-BS,YTZ7S,YB7C-A
CT-NA12V3.5Ah	12	3.5	0~75	110	85	1-10	115×70×130	YTX7L-BS
CT-NA12V3.5Ah	12	3.5	0~75	110	85	1-10	150×85×95	YTX7A-BS
CT-NA12V4.5Ah	12	4.5	0~75	112.5	87	1-12	115×70×110	YTX5L-BS,YTZ7S,YB7C-A
CT-NA12V4.5Ah	12	4.5	0~75	112.5	87	1-12	115×70×130	YTX7L-BS
CT-NA12V4.5Ah	12	4.5	0~75	112.5	87	1-12	150×85×95	YTX7A-BS
CT-NA12V7Ah	12	7	0~75	220	170	2-21	150×85×105	YTX9-BS
CT-NA12V7Ah	12	7	0~75	220	170	2-21	150×85×130	YT12A-BS,YTZ12S,YTX12- BS,YTZ14S,YB12B-B2
CT-NA12V9Ah	12	9	0~75	230	174	2-27	150×85×105	YTX9-BS
CT-NA12V9Ah	12	9	0~75	230	174	2-27	150×85×130	YT12A-BS,YTZ12S,YTX12- BS,YTZ14S,YB12B-B2
Low-temperature charging
Model	Nominal Voltage(V)	Typical Capacity(Ah)	Operating Temperature(℃)	25±2℃ CA（A）	-18±2℃ CCA（A）	Charge Current(A)	Size（mm）	Suitable for lead-acid battery models
CT-NA12V2Ah-LT	12	2	-20~75	100	75	1-6	115×70×86	YTX4L-BS,YTZ5S,YB4L-A,YB4L-B
CT-NA12V2Ah-LT	12	2	-20~75	100	75	1-6	115×70×110	YTX5L-BS,YTZ7S,YB7C-A
CT-NA12V3.5Ah-LT	12	3.5	-20~75	140	105	1-10	115×70×110	YTX5L-BS,YTZ7S,YB7C-A
CT-NA12V3.5Ah-LT	12	3.5	-20~75	140	105	1-10	115×70×130	YTX7L-BS
CT-NA12V3.5Ah-LT	12	3.5	-20~75	140	105	1-10	150×85×95	YTX7A-BS
CT-NA12V4.5Ah-LT	12	4.5	-20~75	180	140	1-12	115×70×110	YTX5L-BS,YTZ7S,YB7C-A
CT-NA12V4.5Ah-LT	12	4.5	-20~75	180	140	1-12	115×70×130	YTX7L-BS
CT-NA12V4.5Ah-LT	12	4.5	-20~75	180	140	1-12	150×85×95	YTX7A-BS
CT-NA12V7Ah-LT	12	7	-20~75	280	210	2-21	150×85×105	YTX9-BS
CT-NA12V7Ah-LT	12	7	-20~75	280	210	2-21	150×85×130	YT12A-BS,YTZ12S,YTX12- BS,YTZ14S,YB12B-B2
CT-NA12V9Ah-LT	12	9	-20~75	360	270	2-27	150×85×105	YTX9-BS
CT-NA12V9Ah-LT	12	9	-20~75	360	270	2-27	150×85×130	YT12A-BS,YTZ12S,YTX12- BS,YTZ14S,YB12B-B2
