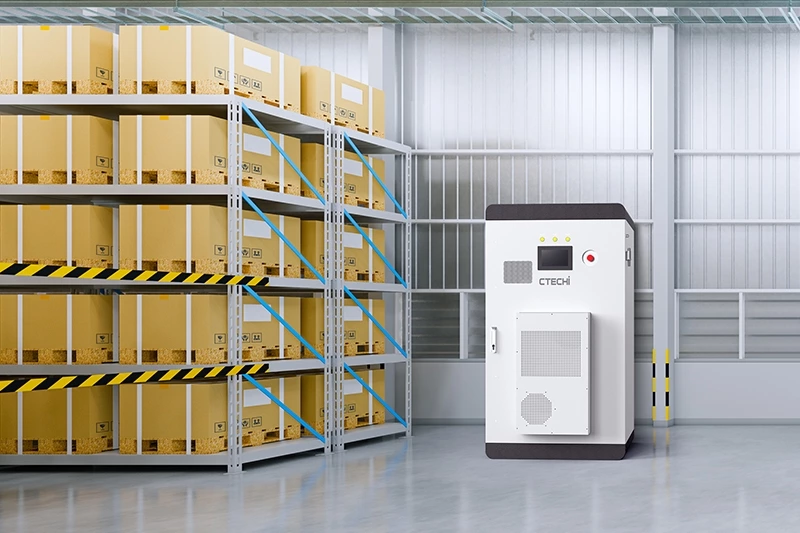

CTECHI 50KW 108KWH Commercial & Industrial BESS Battery Energy Storage System

Battery System Parameters

Battery Cell

LFP,3.2V/314AH

Battery Box

1P36S-115.2V/,36.17KWH

Battery Box Quantity

3pcs

System Rated Power

108.52kwh

System Rated Voltage

345.6v

System Voltage Range

291.6v~394.2v(2.7v~3.65v)

Charge And Discharge Rate

≤ 0.5C

Discharge Depth

95%

Communication Interface

RS485/CAN

Cooling Method

Intelligent Air Cooling

Fire Protection System

Aerosol Adhesive

PCS Parameters

Rated Power

50KW

AC Current Harmonics

<5% (Rated Power)

DC Component

<0.5%

Rated Grid Voltage

230V/400V

Grid Voltage Range

-20%~15 %

Rated Grid Frequency

50/60Hz

Maximum Efficiency

97.8%

Wiring Method

Three-Phase Four-Wire

Communication Interface

RS485/CAN

Grid-Connected Switching

Supports On-Grid And Off-Grid Switching , With Built-In STS (Switching Time <5ms)

MPPT Parameters

Rated Power

38.4KW+38.4KW

PV Side Voltage

250~700V

Maximum Efficiency

>99%

System Parameters

Installation Location

Outdoor Installation ( It Is Recommended To Build A Canopy )

Protection Level

IP55

Corrosion Resistance

None

Operating Humidity Range

5~95% (No Condensation)

Operating Temperature Range

-20~60 ℃

Maximum Operating Altitude

3000m (>2000m Derating)

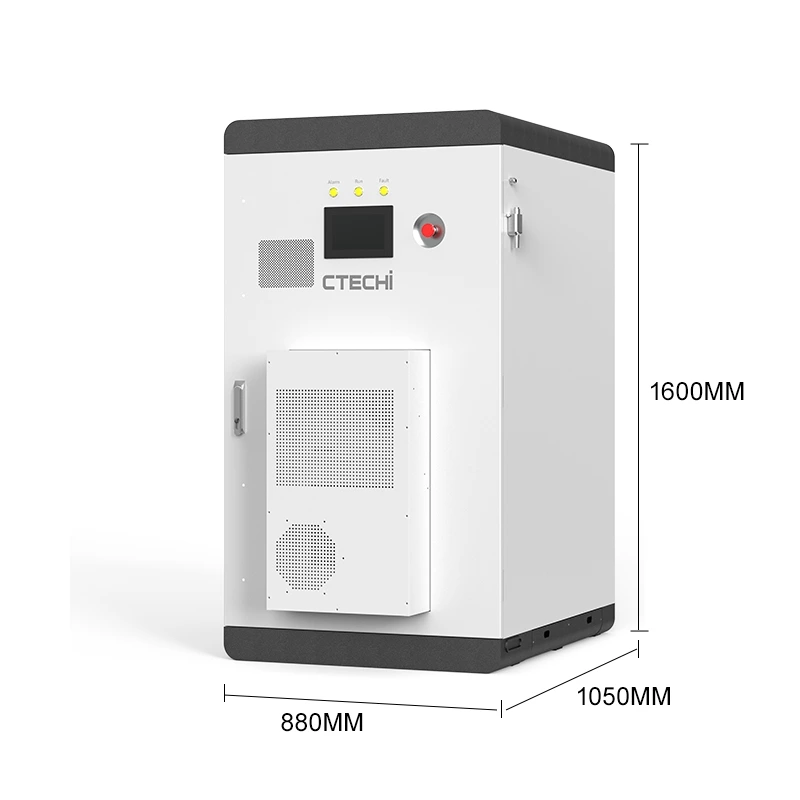

Dimensions (Length*Width*Height)

880*1050*1600

Weight

About 1000kg
