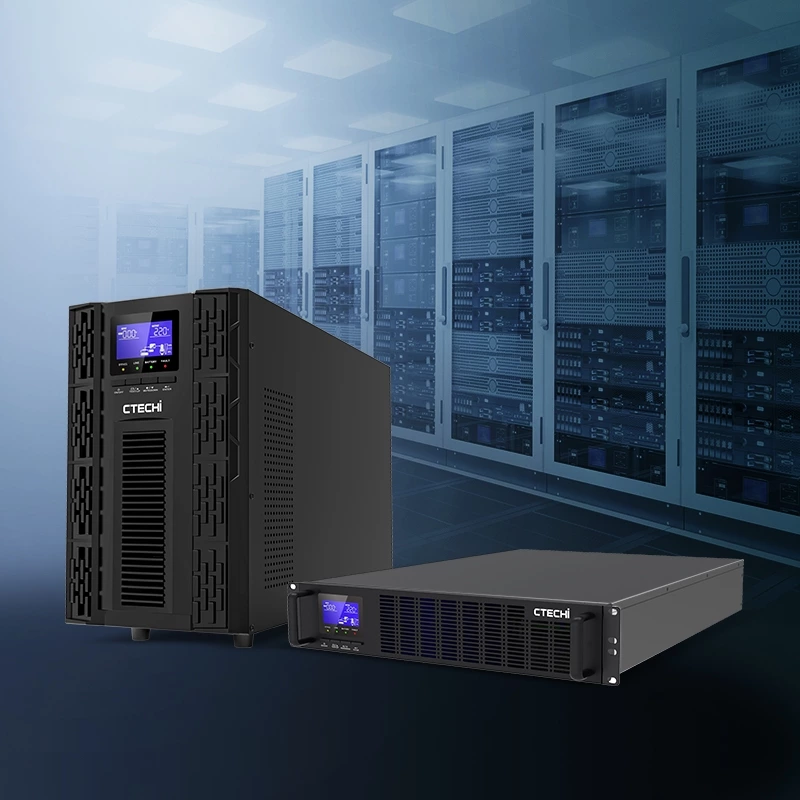

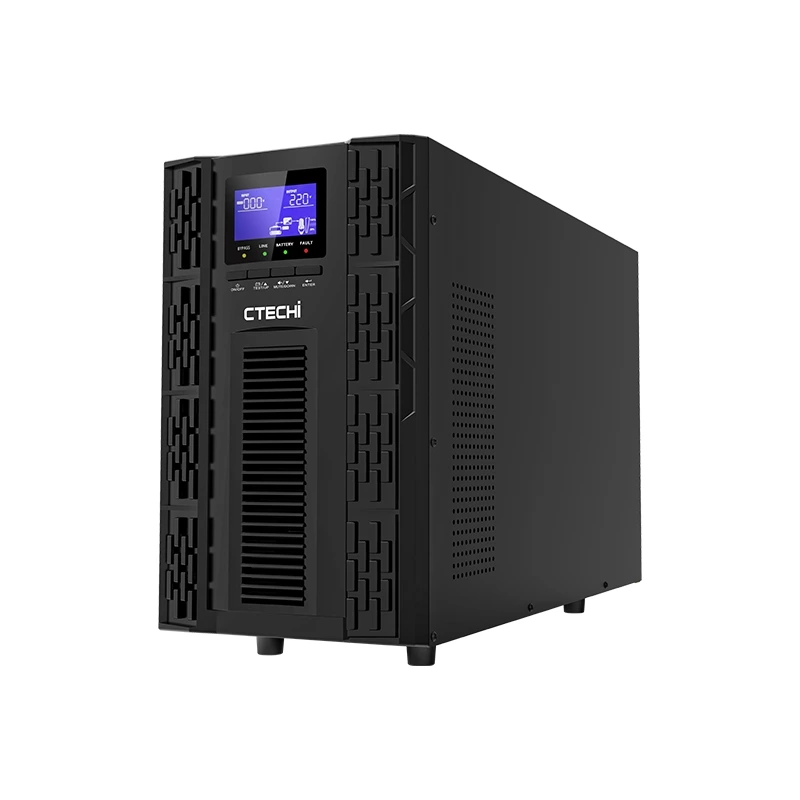

This series comprises high-capacity LiFePO4 UPS units (6KVA to 10KVA) in both tower and rack-mount configurations, designed for 220V applications. These higher-capacity LiFePO4 UPS systems offer superior backup performance, energy efficiency, and advanced battery management for demanding 220V environments. They are suitable for both tower and rack deployments.

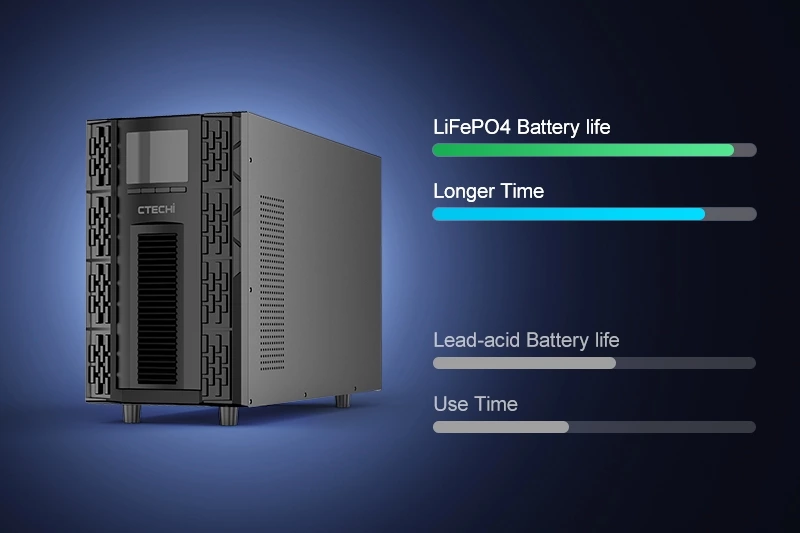

Provides significantly longer backup times (up to 3x) and a more durable lifecycle compared to lead-acid batteries, ideal for long-term power autonomy.
Features a comprehensive battery management system with MODBUS (RS485) integration for precise control and monitoring of the Li-ion battery pack, ensuring optimal health and performance.

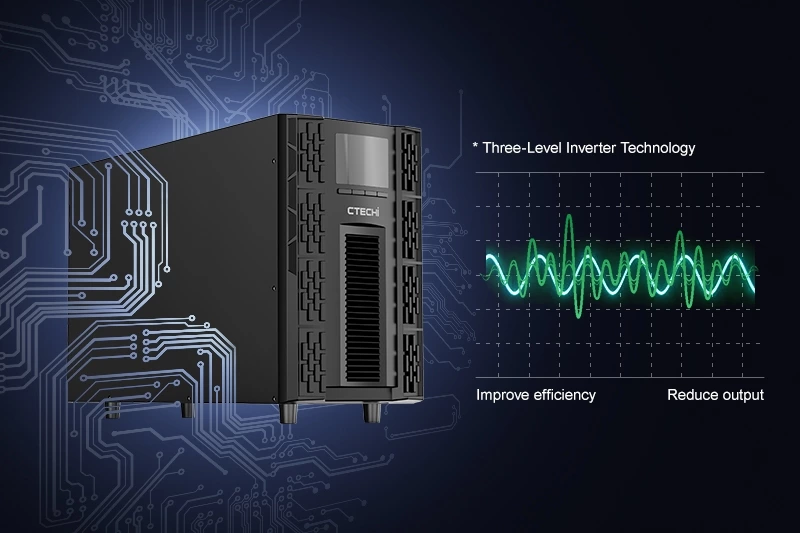

Improves overall efficiency and reduces output harmonic distortion, delivering clean and stable power to critical loads.
Ensures highly efficient power draw from the utility, minimizing energy waste and improving the overall power system's performance.

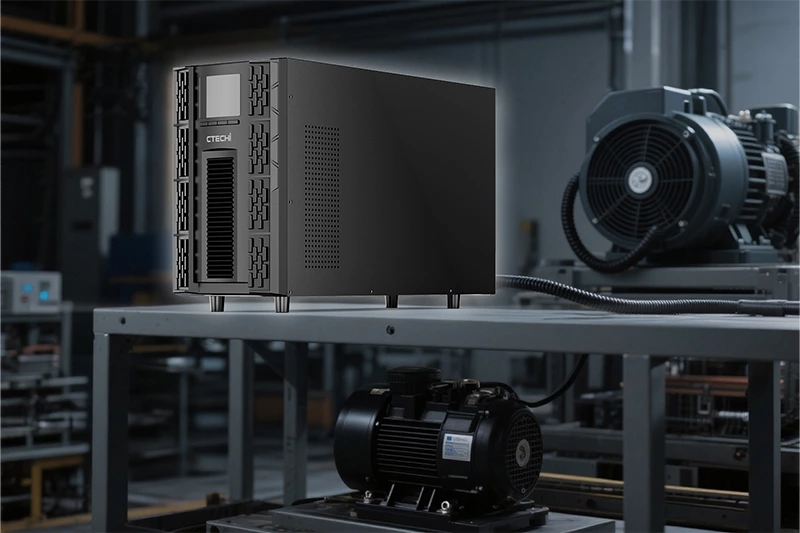

Enables seamless integration with generator power, ensuring continuous operation during prolonged power outages.

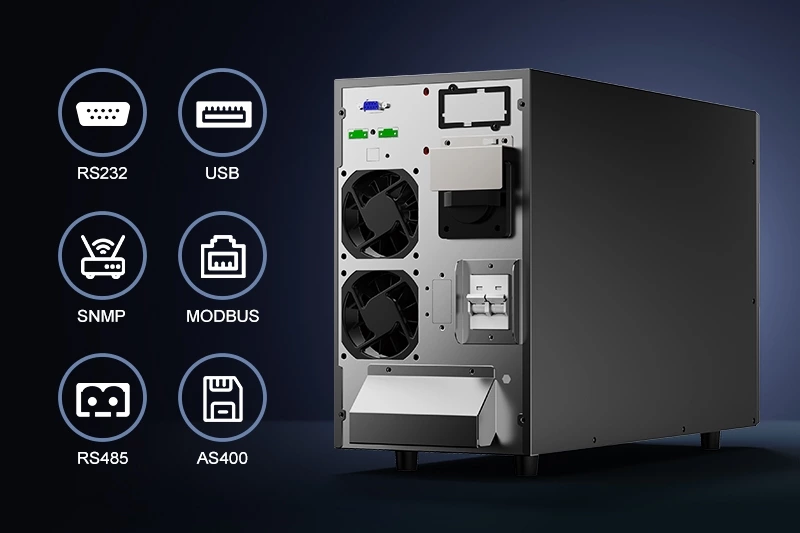

Includes standard RS232 and optional USB, Network (SNMP), MODBUS, RS485, and AS400 cards for diverse monitoring and management capabilities.
|
Tower Model |
Li HV C6KS |
Li HV C10KS |
||
|

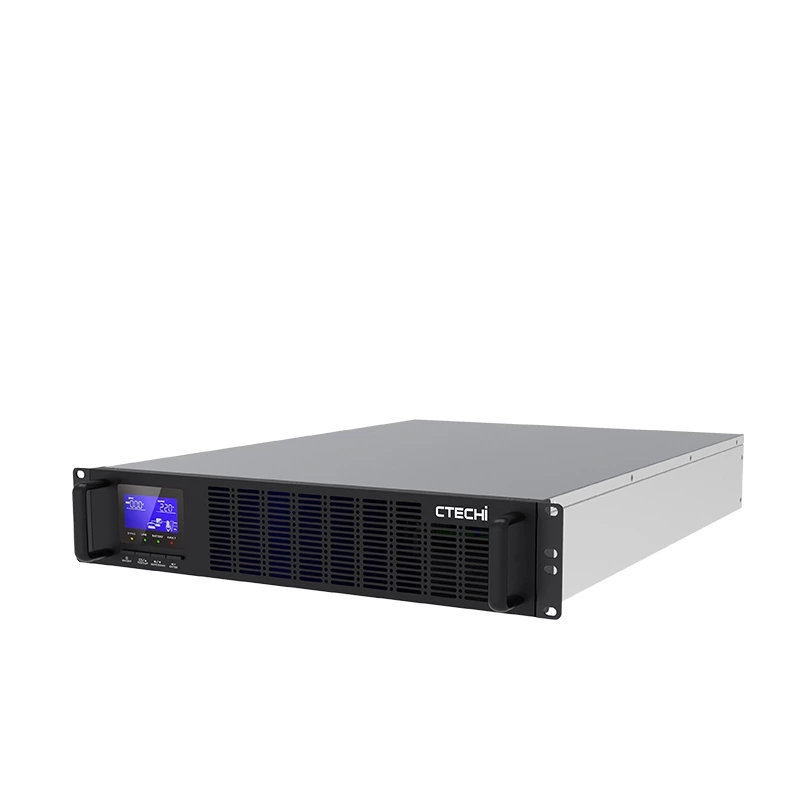

Rack Model |
Li HV R6KS |
Li HV R10KS |
||
|
Capacity |
6KVA/5.4KW |
10KVA/9KW |
||
|
AC INPUT |
|
|||
|
Input System |
Single phase (L/N+PE) |
|||
|
Nominal Voltage |
208/220/230/240VAC |
|||
|
Frequency |
50/60Hz |
|||
|
Voltage Range |
90~300VAC |
|||
|
Frequency Range |
（40~70)±0.5Hz |
|||
|
Input Power Factor |
>0.99 |
|||
|
BATTERY INPUT |
|
|||
|
Charging Voltage |
216V(default for 60cell of LiFePO4 ) / Customized according to battery request |
|||
|
Battery Capacity |
External |
|||
|
Charger Behavior & Protection |
CC. CV. floating. turn-off 4 states 3 over voltage protection loop, preserve interface for over temperature/over pressure switch off interface |
|||
|
Charging Current |
Long backup time model : 4A/8A (optional) |
|||
|
AC OUTPUT |
|
|||
|
Output Wiring System |
Single phase (L/N+PE) |
|||
|
Inverter Output Voltage |
208/220/230/240VAC±1% |
|||
|
Waveform |
Pure sine wave |
|||
|
Harmonic Distortion |
THD<2% (linear load) ; THD<7% (non-linear load) |
|||
|
Output Frequency |
50/60±4Hz (Sync mode); 50/60Hz±0.1% (Fix freq.mode) |
|||
|
Overload Capability |
100%~105% continuous; 60Sec.@105%~130% rated load; 10Sec.@130%~150% rated load; 0.3Sec.@>150% rated load. |
|||
|
Transfer Time |
Line mode <-> Battery mode : 0ms |
|||
|
EFFICIENCY |
|
|||
|
Line Mode |
>92% |
>93% |
||
|
Battery Mode |
>90% |
|||
|
OTHERS |
|
|||
|

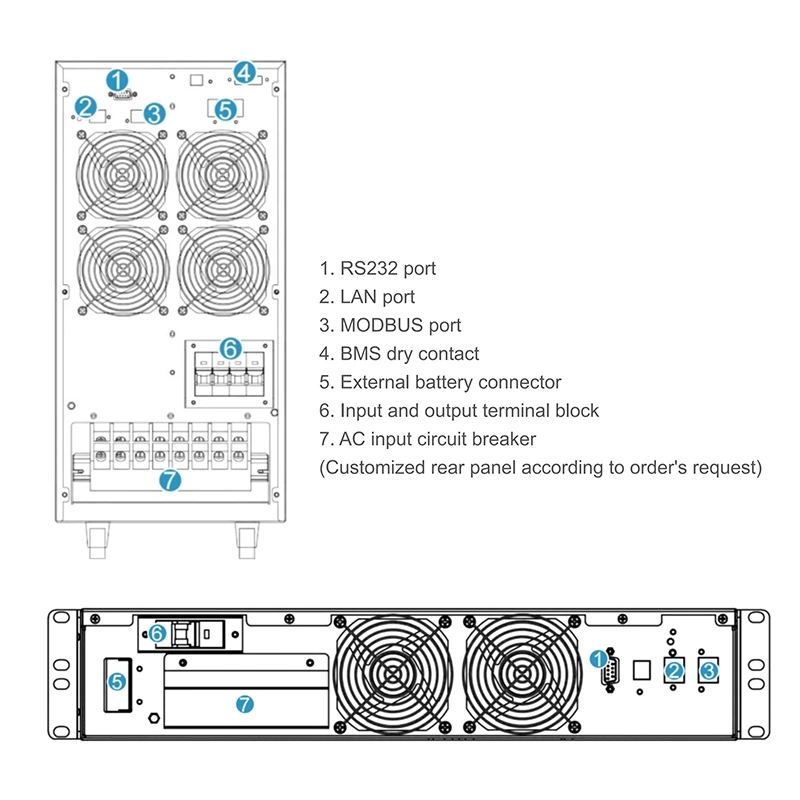

Standards Communication Interface |
(1) RS232 port (2) Network card: Support SNMP,TCP/IP protocol , for remote monitor the UPS via smart phone APP, web page, PC monitor software, support server / NAS shutdown (3) Dry contact interface for BMS control (4) MODBUS for BMS interface |
|||
|
Alarm Function |
AC/DC input under abnormal, overload condition and inverter problems |
|||
|
Protection Function |
AC input or output above or below the range of voltage, overload, over temperature and short circuit protection |
|||
|
ENVIRONMENT |
|
|||
|
Temperature Range |
-10~50°C |
|||
|
Relative Humidity |
0-98%（Non-condensing） |
|||
|
Acoustics Noise |
<55dB @ 1 meters |
|||
|
PHYSICAL |
|
|||
|
Tower Dimension WxDxH (mm) |
190x378x318 |
190x546x340 |
||
|
Rack Dimension WxDxH(mm) |
439.4x500x88 (2U) |
439.4x500x88 (2U) |
||
|
Tower N.W (kg) |
14.8 |
16 |
||
|
Rack N.W (kg) |
11.5 |
13.5 |
||
