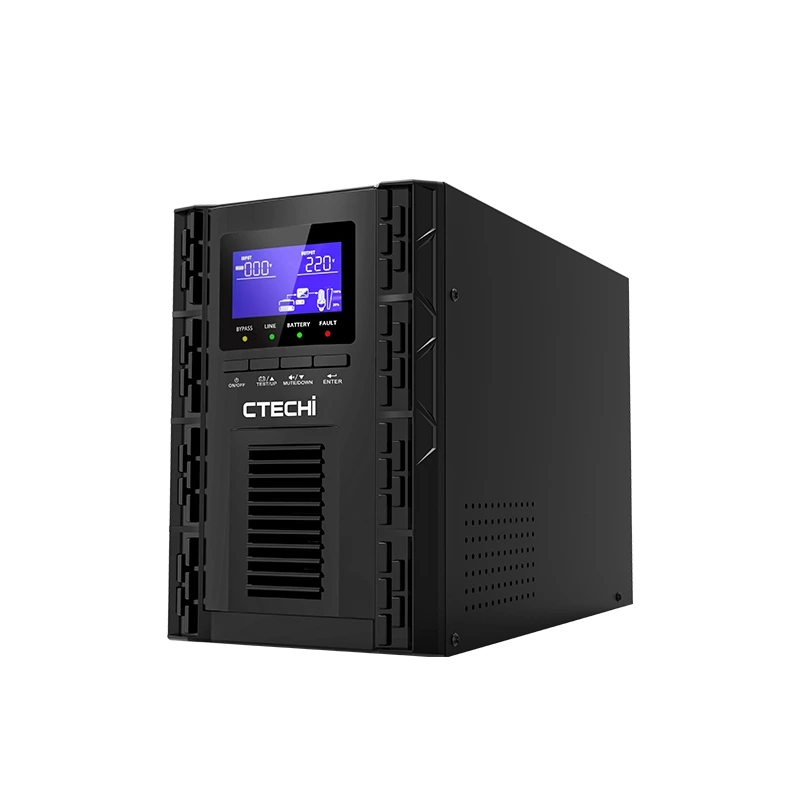

This series features UPS units with LiFePO4 batteries, offering 1KVA to 3KVA capacities in both tower and rack-mount form factors, for 220V environments. These UPS systems utilize advanced LiFePO4 battery technology, providing up to 3x longer backup time compared to traditional lead-acid UPS products. They offer high frequency on-line double conversion and smart battery management.
Offers significantly longer battery lifecycle and extended backup times (up to 3x compared to lead-acid), reducing maintenance and replacement costs.
Features integrated MODBUS (RS485) interface with BMS and a 4-state charger (constant current, constant voltage, floating, turn-off) optimized for Li-ion batteries, ensuring safety and performance.
Available in both tower and rack-mount designs, providing versatility for various installation environments, from offices to data centers.
Maintains high efficiency in both line mode and battery mode, minimizing energy consumption and operational costs.
Ensures stable operation under varying power conditions, making it robust and reliable in different electrical environments.
Allows the UPS to power on and provide power to connected equipment even when there is no utility power, essential for critical startup scenarios.
|
Tower Model |
Li HV C1K |
Li HV C1KS |
Li HV C2K |
Li HV C2KS |
Li HV C3K |
Li HV C3KS |
||||||||
|

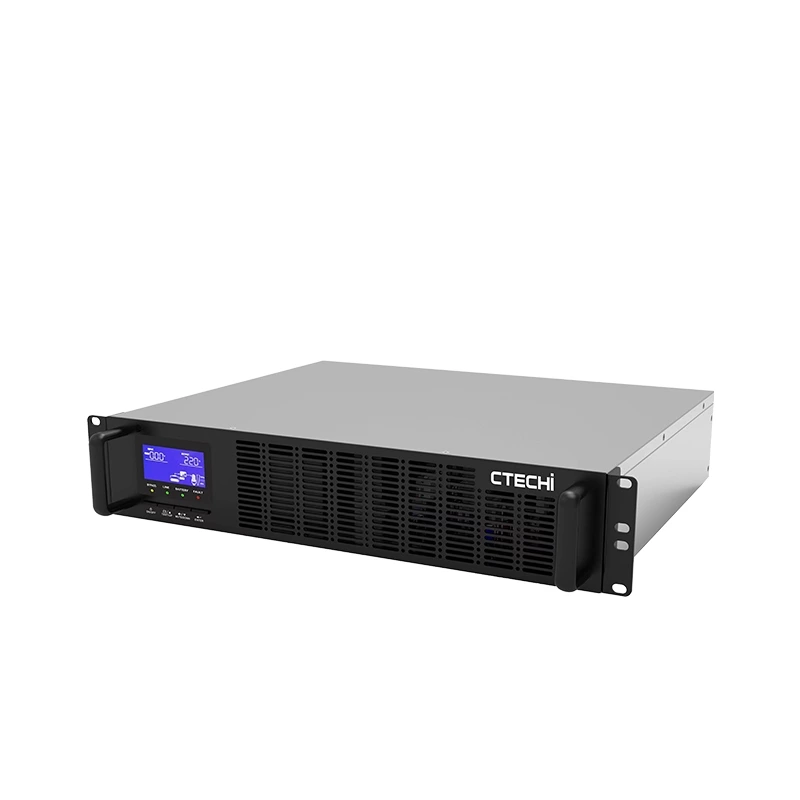

Rack Model |
Li HV R1K |
Li HV R1KS |
Li HV R2K |
Li HV R2KS |
Li HV R3K |
Li HV R3KS |
||||||||
|
Capacity |
1KVA/900W |
2KVA/1.8KW |
3KVA/2.7KW |
|||||||||||
|
AC INPUT |
|
|||||||||||||
|
Wiring |
L/N+PE |
|||||||||||||
|
Rated Voltage |
208/220/230/240VAC |
|||||||||||||
|
Voltage Range |
90~300VAC |
|||||||||||||
|
Frequency Range |
40Hz~70Hz |
|||||||||||||
|
Input Power Factor |
≥0.99 |
|||||||||||||
|
AC OUTPUT |
|
|||||||||||||
|
Wiring |
L/N+PE |
|||||||||||||
|
Output Voltage |
208/220/230/240VAC |
|||||||||||||
|
Voltage Regulation |
±1% |
|||||||||||||
|
Output Frequency |
50/60±4Hz(Sync mode) ; 50/60Hz±0.1%(Free run) |
|||||||||||||
|
Waveform |
Pure sine wave |
|||||||||||||
|
Distortion(THDV%) |
<2%(Linear load); <7%(Non-Linear load) |
|||||||||||||
|
Overload Capability |
100%~105% continuous;60Sec.@105%~130% rated load;10Sec.@130%~150% rated load;0.3Sec.@>150% rated load. |
|||||||||||||
|
EFFICIENCY |
|
|||||||||||||
|
Line Mode |
88% |
89% |
90% |
|||||||||||
|
Battery Mode |
86% |
87% |
88% |
|||||||||||
|
BATTERY & CHARGER |
|
|||||||||||||
|
Rated Battery Voltage |
48VDC (default for 15cell of LiFePO4 ) |
|||||||||||||
|
Battery Capacity |
600WH |
External battery depends |
1000WH |
External battery depends |
1000WH |
External battery depends |
||||||||
|
Backup Time |
>40mins @ half load |
>30mins @ half load |
>20mins @ half load |
|||||||||||
|
Charging Current |
4A/8A |
|||||||||||||
|
Charging Voltage |
52.8V(default for 15cell of LiFePO4 ) / Customized according to battery request |
|||||||||||||
|
Charger Behavior & Protection |
CC. CV. floating. turn-off 4 states 3 over voltage protection loop, preserve interface for over temperature/over pressure switch off interface |
|||||||||||||
|
HMI |
|
|||||||||||||
|
LED Display |
Mains / battery status, load level, battery level, operation mode |
|||||||||||||
|
LCD Display with LED Indicator |
Input mains voltage, frequency, load level, operation mode, health status |
|||||||||||||
|
Standards Communication Interface |

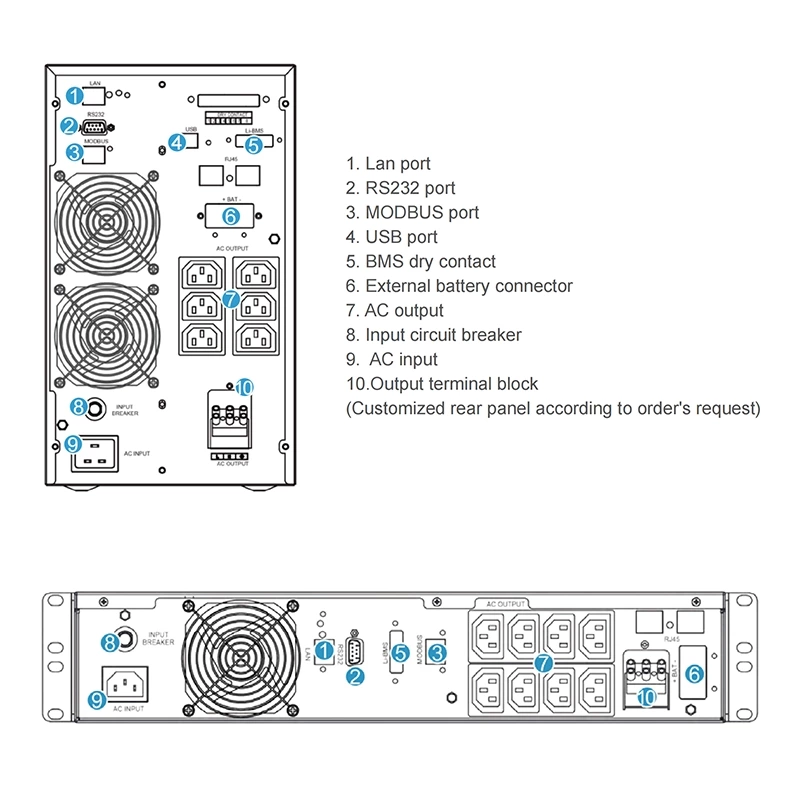

(1) RS232 port (2) Network card: support SNMP,TCP/IP protocol , for remote monitor the UPS via smart phone APP, web page, PC monitor software, support server / NAS shutdown (3) Dry contact interface for BMS control (4) MODBUS For BMS interface |
|||||||||||||
|
ENVIRONMENT |
|
|||||||||||||
|
Temperature Range |
-10~50°C |
|||||||||||||
|
Relative Humidity |
0-98%（Non-condensing） |
|||||||||||||
|
Acoustics Noise |
<55dB @ 1 meters |
|||||||||||||
|
PHYSICAL |
|
|||||||||||||
|
Tower Dimension WxDxH (mm) |
C1K: 190x378x318 |
C2K: 190x427x318 |
C3K: 190x427x318 |
|||||||||||
|
C1KS: 145x397x220 |
C2KS: 145x397x220 |
C3KS: 190x378x318 |
||||||||||||
|
Rack Dimension WxDxH(mm) |
R1K: 440x400x88 (2U) |
R2K: 440x500x88 (2U) |
R3K: 440x650x88 (2U) |
|||||||||||
|
R1KS: 440x400x88 (2U) |
R2KS: 440x400x88 (2U) |
R3KS: 440x400x88 (2U) |
||||||||||||
|
Tower N.W (kg) |
10.8 |
5 |
16.5 |
5.5 |
18 |
7.9 |
||||||||
|
Rack N.W (kg) |
12.5 |
6.5 |
21.6 |
6.8 |
24.5 |
8.2 |
||||||||
