450 - 550 Watt Monocrystalline Solar Panel

  • High transmissivity low-iron tempered glass, strong aluminium frame
  • Manufactured according to international quality and environment management system (ISO 9001, ISO 14001)
  • Low voltage-temperature coefficient allows higher power output at high-temperature condition
  • High efficiency, high reliable solar cells ensure our product output stability high efficiency crystalline silicone solar cells
  • 100% A grade solar cell with positive tolerance power range
  • Long lifespan, easy installation, high wind & hail impact resistance
  • Modules binned current to improve system performance
Enquiry Download
450 - 550 Watt Monocrystalline Solar Panel
450 - 550 Watt Monocrystalline Solar Panel
450 - 550 Watt Monocrystalline Solar Panel
450 - 550 Watt Monocrystalline Solar Panel
450 - 550 Watt Monocrystalline Solar Panel

Product Introduction

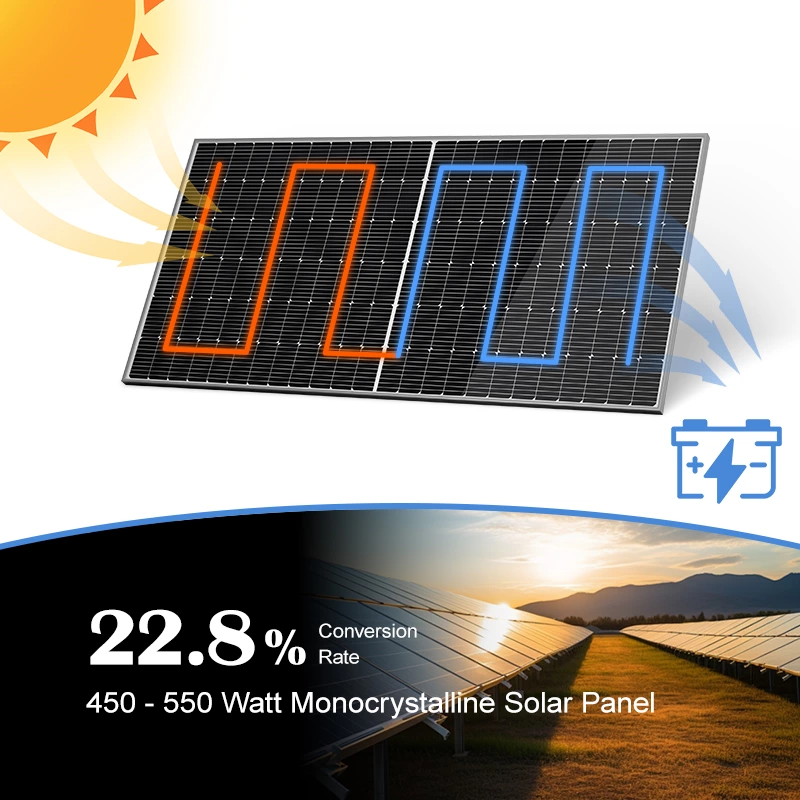

CTECHI high-efficiency solar glass panels, engineered to optimize solar energy capture and enhance the performance of photovoltaic installations. These panels utilize advanced PERC (Passivated Emitter and Rear Cell) technology, featuring a rear layer that captures additional solar radiation and reflects excess sunlight within the cell. This design significantly boosts the efficiency of solar cells compared to traditional photovoltaic panels, resulting in higher energy output and cost-effectiveness.

450 - 550 Watt Monocrystalline Solar Panel

High Transmissivity and Durability

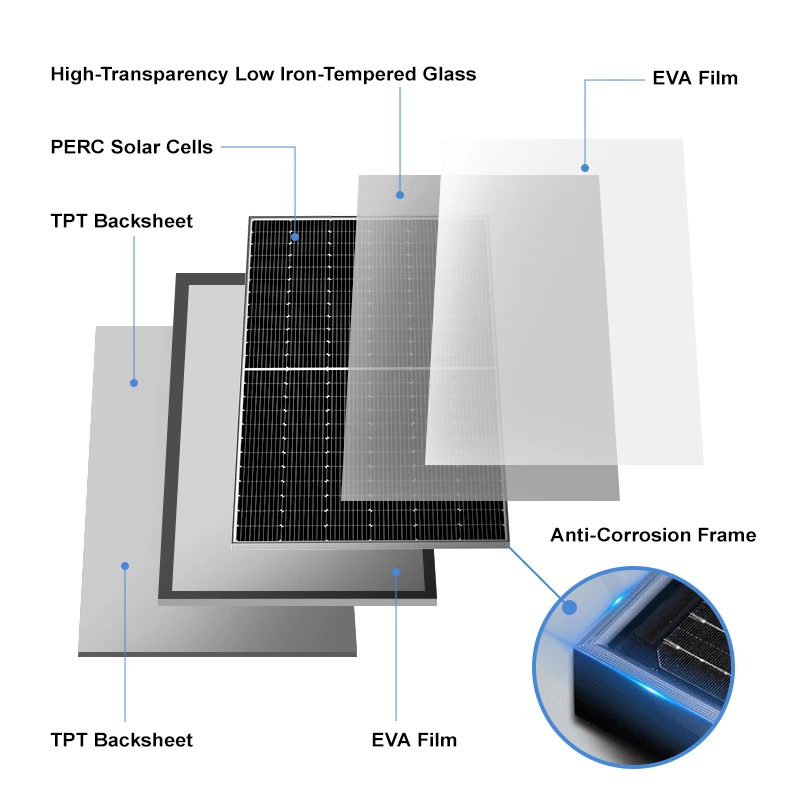

Constructed with high-transmissivity, low-iron tempered glass and a robust aluminum frame, our panels ensure maximum sunlight penetration and long-lasting durability.

450 - 550 Watt Monocrystalline Solar Panel

Superior Efficiency

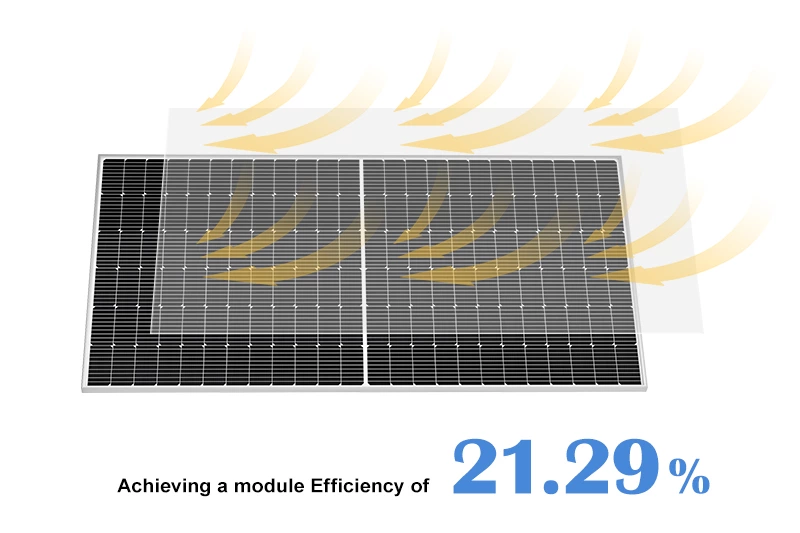

Equipped with high-efficiency N-Type monocrystalline silicon solar cells, achieving a module efficiency of 21.29%, our panels deliver exceptional performance even under high-temperature conditions.

450 - 550 Watt Monocrystalline Solar Panel

Quality Assurance

Manufactured in compliance with international quality and environmental management systems (ISO 9001, ISO 14001), ensuring product reliability and sustainability.

450 - 550 Watt Monocrystalline Solar Panel

Enhanced Performance

Features a low voltage-temperature coefficient, allowing for higher power output in high-temperature environments, and current binning to improve overall system performance.

Technical Data

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.
Model CTMONO100 CTMONO200 CTMONO550 CTMONO600 CTMONO650
Maximum Power at STC 100W 200W 550W 600W 650W
Optimum Operating Voltage (Vmp) 20.4V 19.2V 42.71V 34.4V 37.4V
Open-Circuit Voltage (Voc) 24.3V 23V 50.14V 41.5V 37.3V
Optimum Operating Current (Imp) 4.91A 10.42A 12.88A 17.45A 17.39A
Short-Circuit Current (Isc) 5.21A 11.05A 13.68A 18.52A 18.44A
Operating Temperature  -40ºC - 85ºC(-40°F - 185°F)
Maximum Series Fuse Rating 15A 20A 25A 30A 30A
Maximum System Voltage 600V DC 600V DC 1000/1500V DC 1000/1500V DC 1500V DC
Output Cable 0.6m(1.97ft) 0.79m(2.6ft) 0.2m(0.65ft) 0.2m(0.65ft) 0.2m(0.65ft)
Weight 6.4 kg(14.1 lbs) 12kg(26.46lbs) 28.3kg(62.39lbs) 30.9 kg / 68.12 lbs 33.6 kg / 74.07 lbs
Dimensions 1062 x 530 x 35 mm (41.8 x 20.9 x 1.38 in) 1491 x 699 x 35 mm (58.7 x 27.5 x 1.38 in) 2278 x 1134 x 35 mm (89.68 x 44.64 x 1.38 in) 2172 x 1303 x 35 mm (85 x 51.29 x 1.38 in) 2384 x 1303 x 35 mm (93 x 51.29 x 1.38 in)

Our Gallery

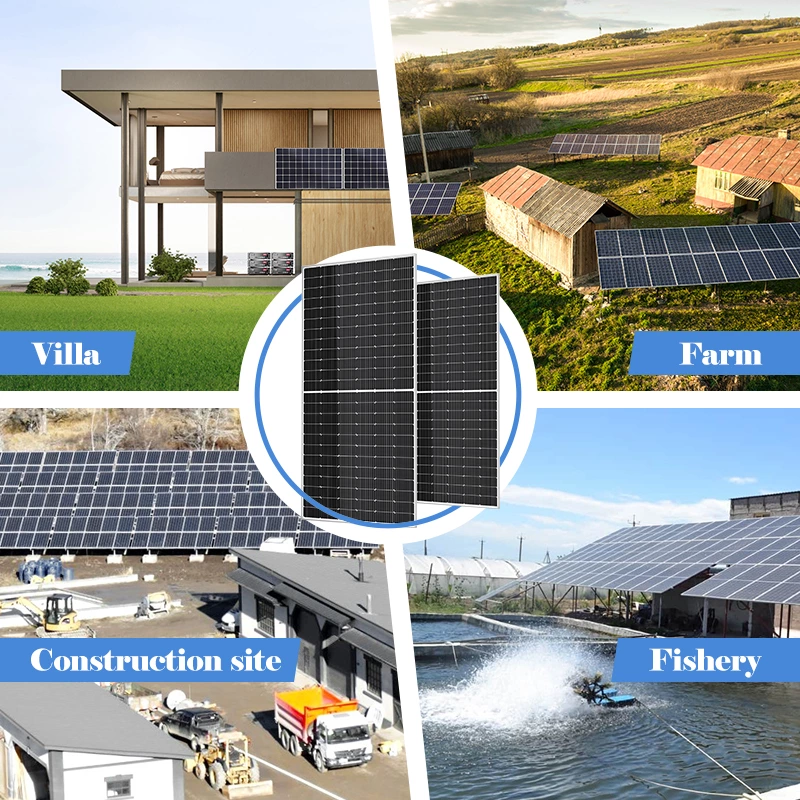

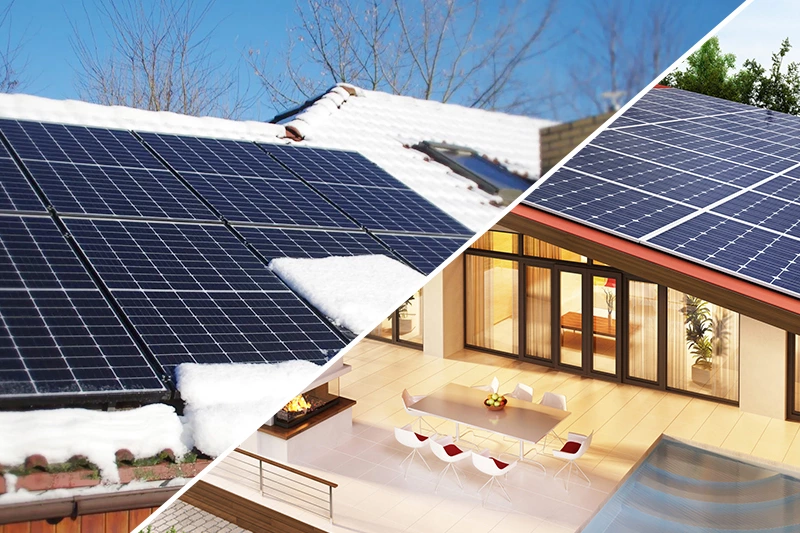

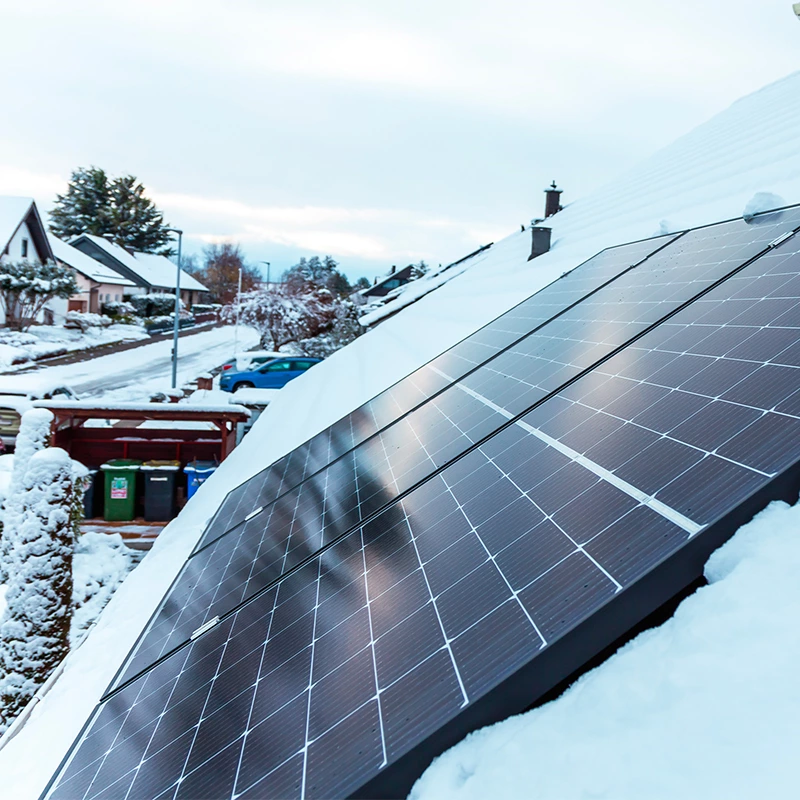

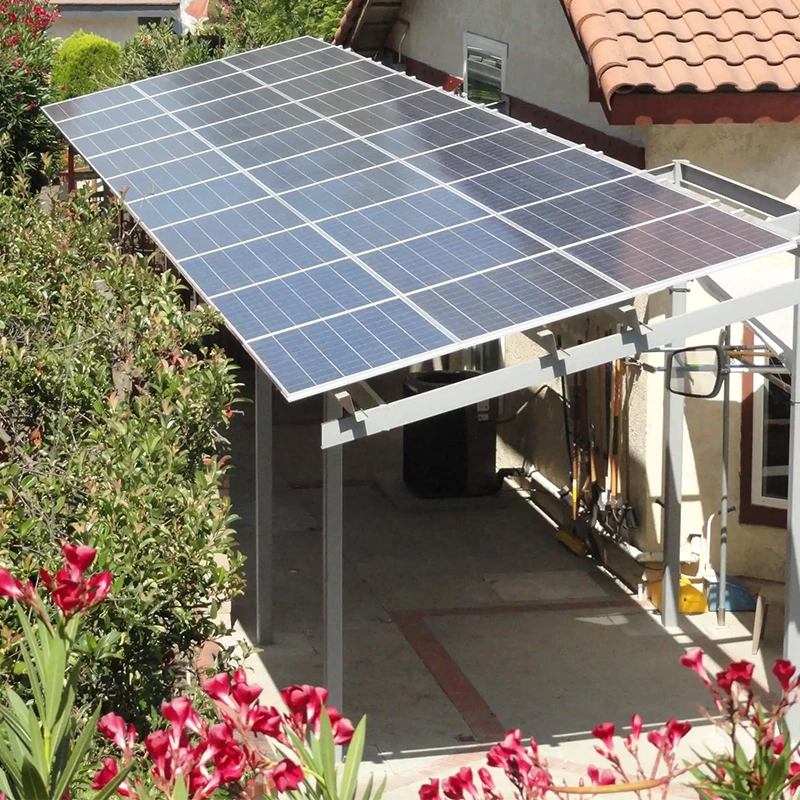

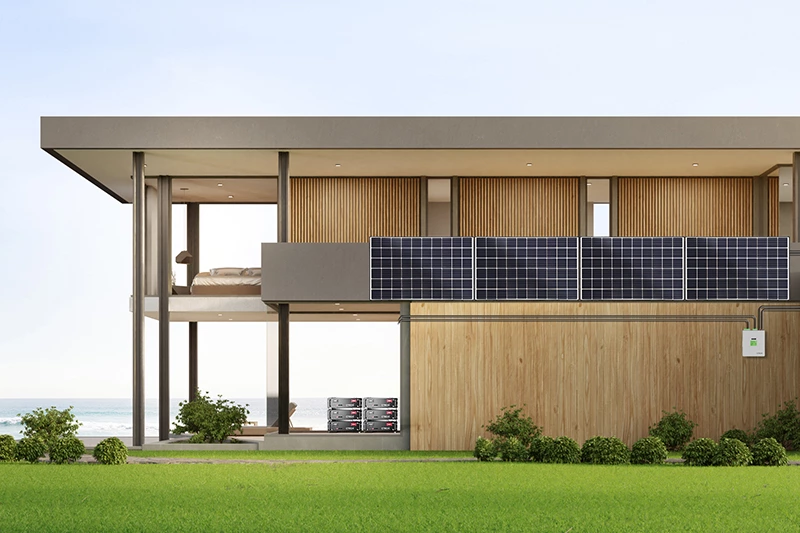

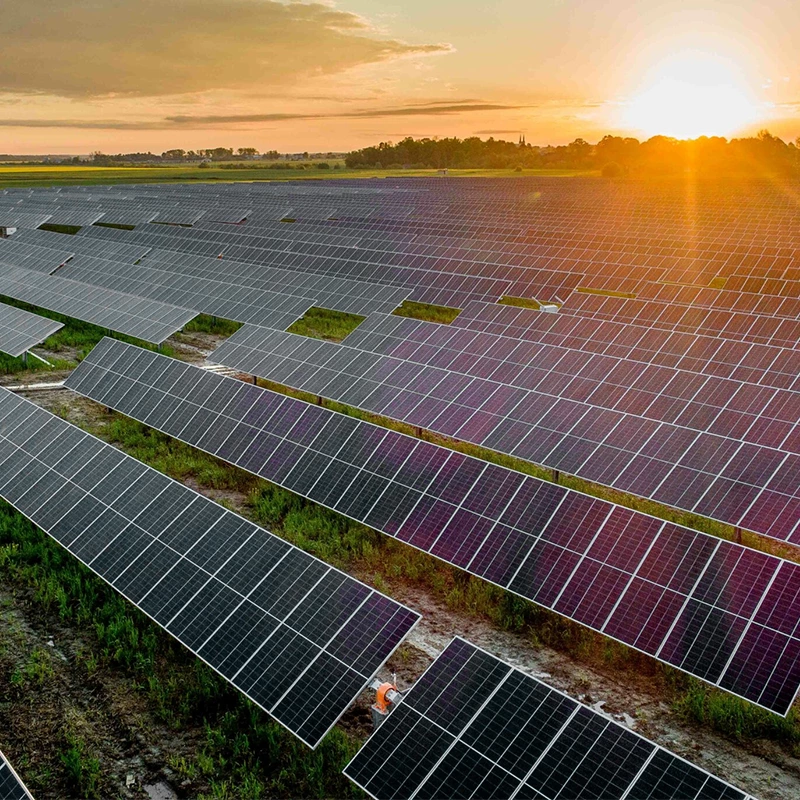

Our products are adaptable to various scenarios, and we provide one-on-one remote assistance for seamless on-site installation.
450 - 550 Watt Monocrystalline Solar Panel
450 - 550 Watt Monocrystalline Solar Panel
450 - 550 Watt Monocrystalline Solar Panel
