CTECHI ESS50KW/112KWh Split-Type Commercial & Industrial BESS Solar Battery Energy Storage System

Name: CTECHI ESS50KW/112KWh Split-Type Commercial & Industrial BESS Solar Battery Energy Storage System
Brand: CTECHI
SKU: 00201
Rating: 4.8 (2 reviews)

Mid-capacity split-type ESS with independent battery and inverter cabinets — optimized for medium-scale commercial facilities requiring flexible floor-plan integration.
Seven 314Ah LFP battery packs in series deliver 358.4V nominal voltage and 112kWh usable capacity with 90% depth of discharge.
50kW high-efficiency hybrid inverter with 98.3% peak conversion efficiency, supporting grid-connected, off-grid, and generator hybrid modes.
Comprehensive 3-tier BMS protection with active cell balancing, SOC/SOH estimation accuracy > 98%, and remote firmware upgrade capability.
Purpose-built for medium-sized factories, office buildings, cold storage facilities, agricultural operations, and community microgrids.

Enquiry Download

CTECHI ESS50KW/112KWh Split-Type Commercial & Industrial BESS Solar Battery Energy Storage System

Product Introduction

The CTECHI ESS50KW/112KWh split-type energy storage system delivers an ideal balance of capacity and power for mid-tier commercial and industrial applications. Engineered around the 314Ah LFP cell platform with 7 packs in a 16S series configuration, the system achieves a nominal voltage of 358.4V and a total energy capacity of 112kWh — offering approximately 72% more storage than the entry-level 65kWh model while maintaining the same split-cabinet deployment advantages. The 50kW hybrid inverter bridges medium-power loads with high efficiency, making it suitable for facilities with 50–150 kVA transformer capacity. Air-cooled thermal management, IP54 ingress protection, and dual RS485/CAN communication channels ensure reliable operation across diverse environmental conditions. Whether deployed for demand charge management, solar self-consumption maximization, or critical load backup, the ESS50KW/112KWh provides a scalable, cost-effective path to energy resilience.

CTECHI ESS50KW/112KWh Split-Type Commercial & Industrial BESS Solar Battery Energy Storage System

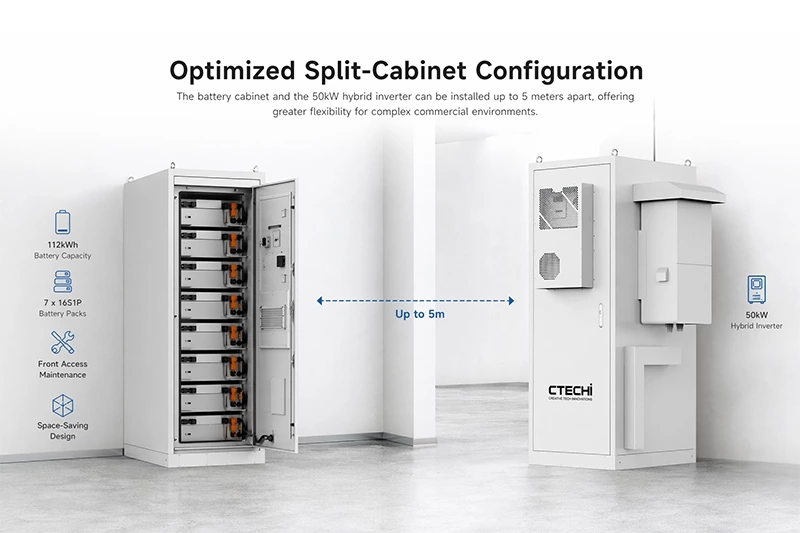

Optimized Split-Cabinet Configuration

Building on a modular split-type architecture, the ESS50KW/112KWh physically separates the battery cabinet, which houses seven 16S1P packs, from the 50kW hybrid inverter. This flexible design allows the cabinets to be positioned up to 5 meters apart, making it an ideal choice for retrofitting commercial buildings with irregular floor plans or structural constraints like columns. Furthermore, the battery cabinet features a front-access maintenance design that eliminates the need for rear clearance, providing a significant spatial advantage for wall-adjacent or tight-space installations.

CTECHI ESS50KW/112KWh Split-Type Commercial & Industrial BESS Solar Battery Energy Storage System

Scalable 358.4V High-Voltage DC Platform

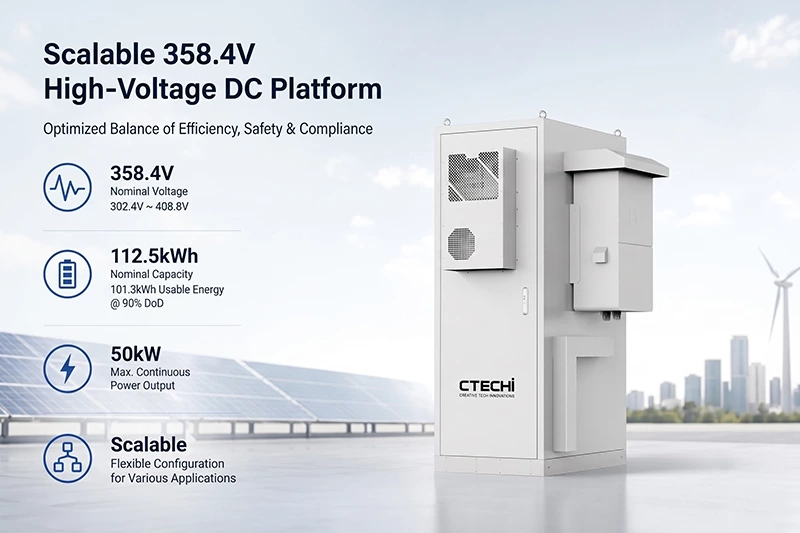

Operating at a nominal 358.4V, the system strikes an optimized balance between high conversion efficiency and operational safety. By utilizing a higher voltage platform, it effectively reduces conduction losses on DC cabling compared to lower-voltage alternatives, while remaining comfortably within Low Voltage Directive (LVD) thresholds for simplified regulatory compliance. This 7-pack series configuration supports a wide voltage range of 302.4V to 408.8V, delivering a nominal capacity of 112.5kWh with 101.3kWh of usable energy at 90% DoD, capable of sustaining a maximum continuous power output of 50kW.

CTECHI ESS50KW/112KWh Split-Type Commercial & Industrial BESS Solar Battery Energy Storage System

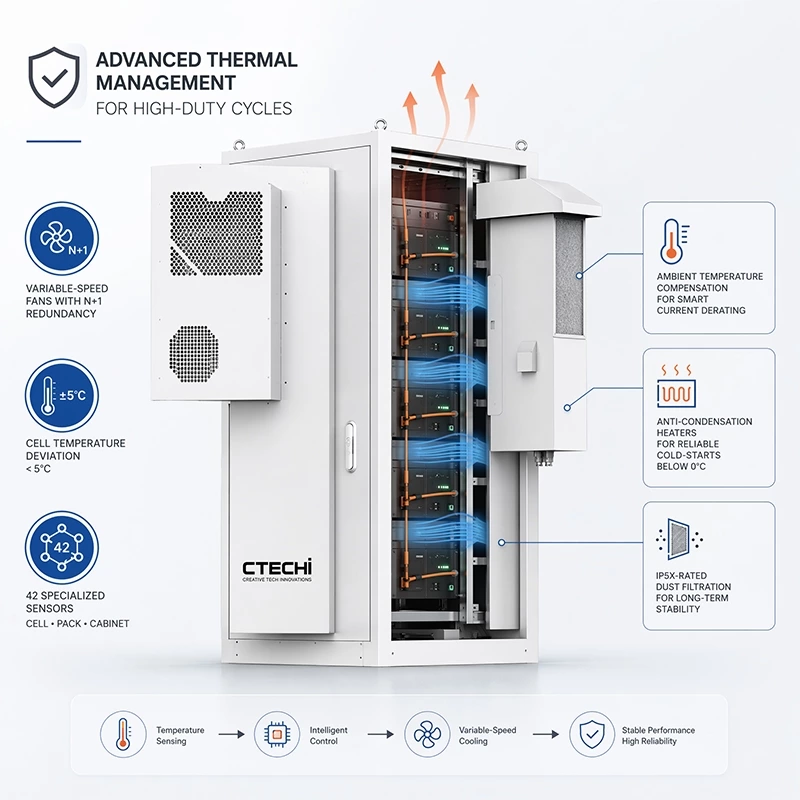

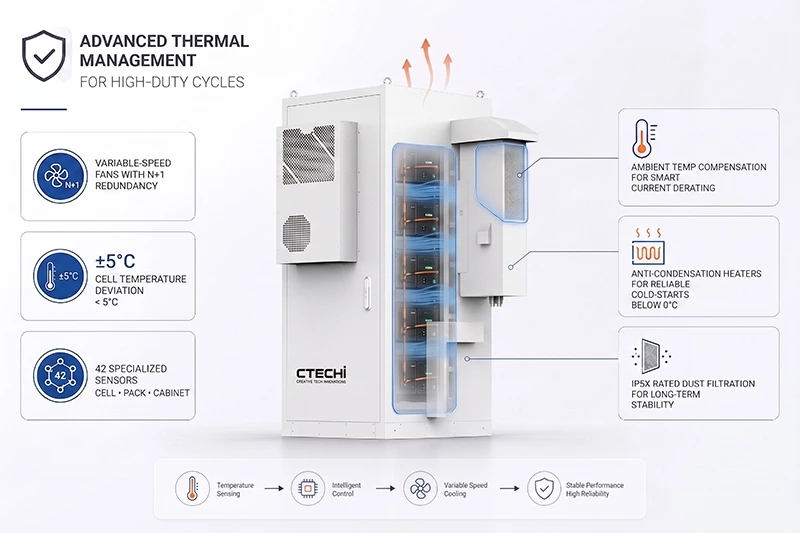

Advanced Thermal Management for High-Duty Cycles

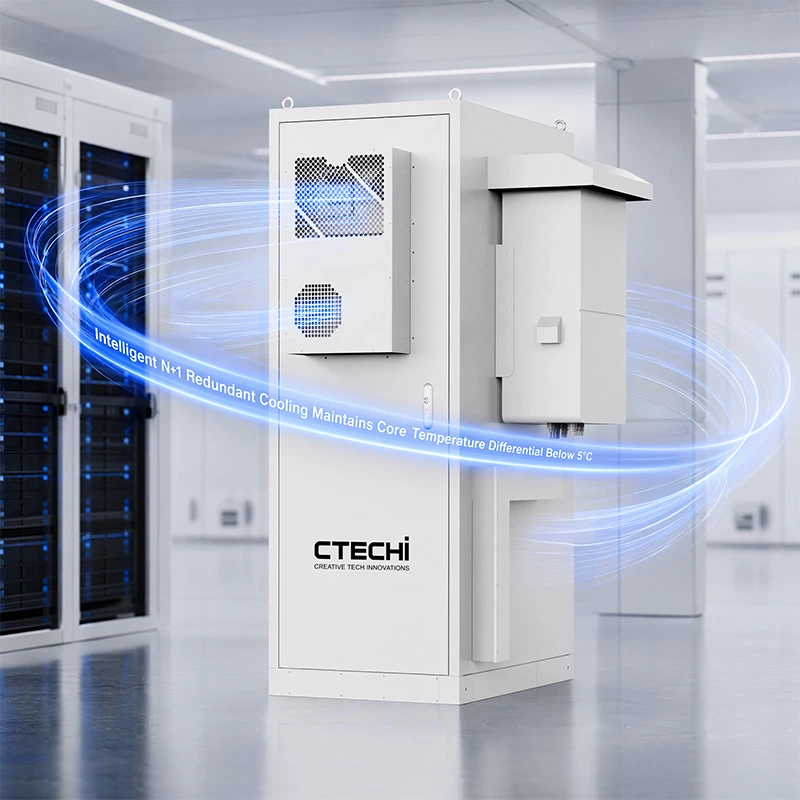

To ensure reliable performance during high-duty cycles, the system employs an intelligent air-cooling system equipped with variable-speed fans and N+1 redundancy. This thermal strategy is driven by a network of 42 specialized sensors monitoring temperatures at the cell, pack, and cabinet levels to maintain a cell temperature deviation of less than 5°C. The system also includes ambient temperature compensation for smart current derating, anti-condensation heaters for reliable cold-starts below 0°C, and IP5X-rated dust filtration to ensure long-term stability in diverse environmental conditions.

CTECHI ESS50KW/112KWh Split-Type Commercial & Industrial BESS Solar Battery Energy Storage System

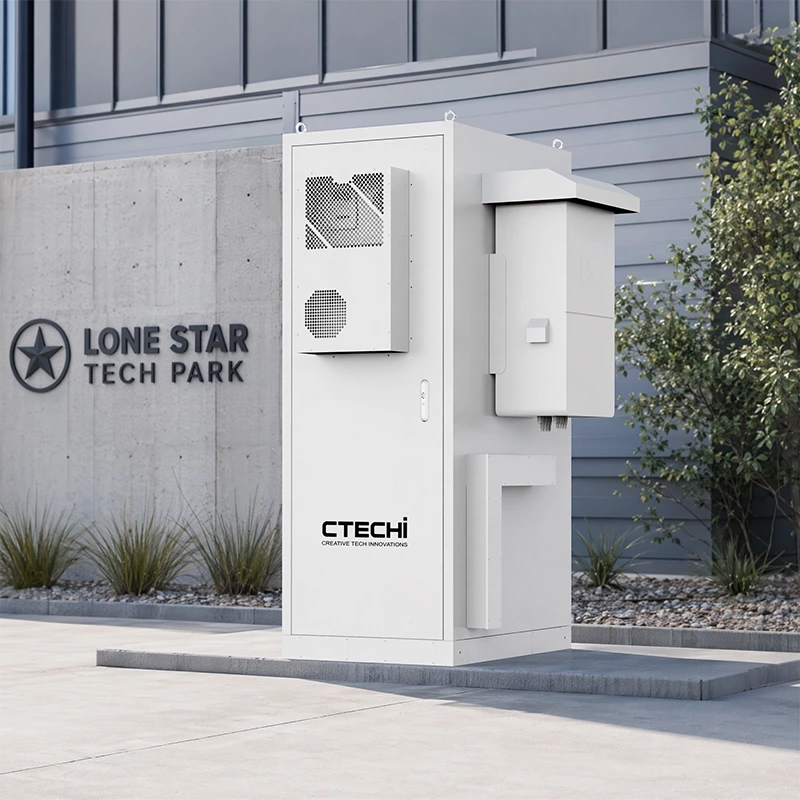

Target Application Profiles

The 50kW/112kWh configuration is specifically optimized for medium-sized commercial environments, ranging from retail and office buildings up to 5,000 m² to energy-intensive facilities like cold storage and refrigerated warehouses. It serves as an excellent solution for agricultural climate control, small manufacturing lines with 30-50kW average loads, and multi-tenant commercial parks seeking shared storage for demand charge reduction. Additionally, it is a powerful tool for diesel generator hybridization, capable of reducing generator runtime and fuel consumption by 60% to 80%.

Technical Data

If you have any questions during the browsing process, please feel free to contact us and communicate with us at any time.

Model	ESS50KW/112KWH
Battery Configuration	16S
Standard Battery Pack	314Ah
Packs in Series	7
Nominal System Voltage	358.4V
System Capacity	112kWh
Cooling Method	Air-cooling
Cabinet Type	Cabinet-type design
Hybrid Inverter-J	50KW

Our Gallery

Our products are adaptable to various scenarios, and we provide one-on-one remote assistance for seamless on-site installation.

Related Case

Our solutions help homeowners cut costs and ensure reliable backup power.

Kazakhstan high-voltage batteries used in factories

Cameroon rack-mounted home storage battery 5KWH

Saudi Arabia industrial and commercial energy storage systems used in villas 100kw+215kwh

Tajikistan home energy storage system 10KW+30KWH

Yemen home energy storage system 10KW+20KWH

Iraqi home energy storage system parallel use 10KW+16KWH
